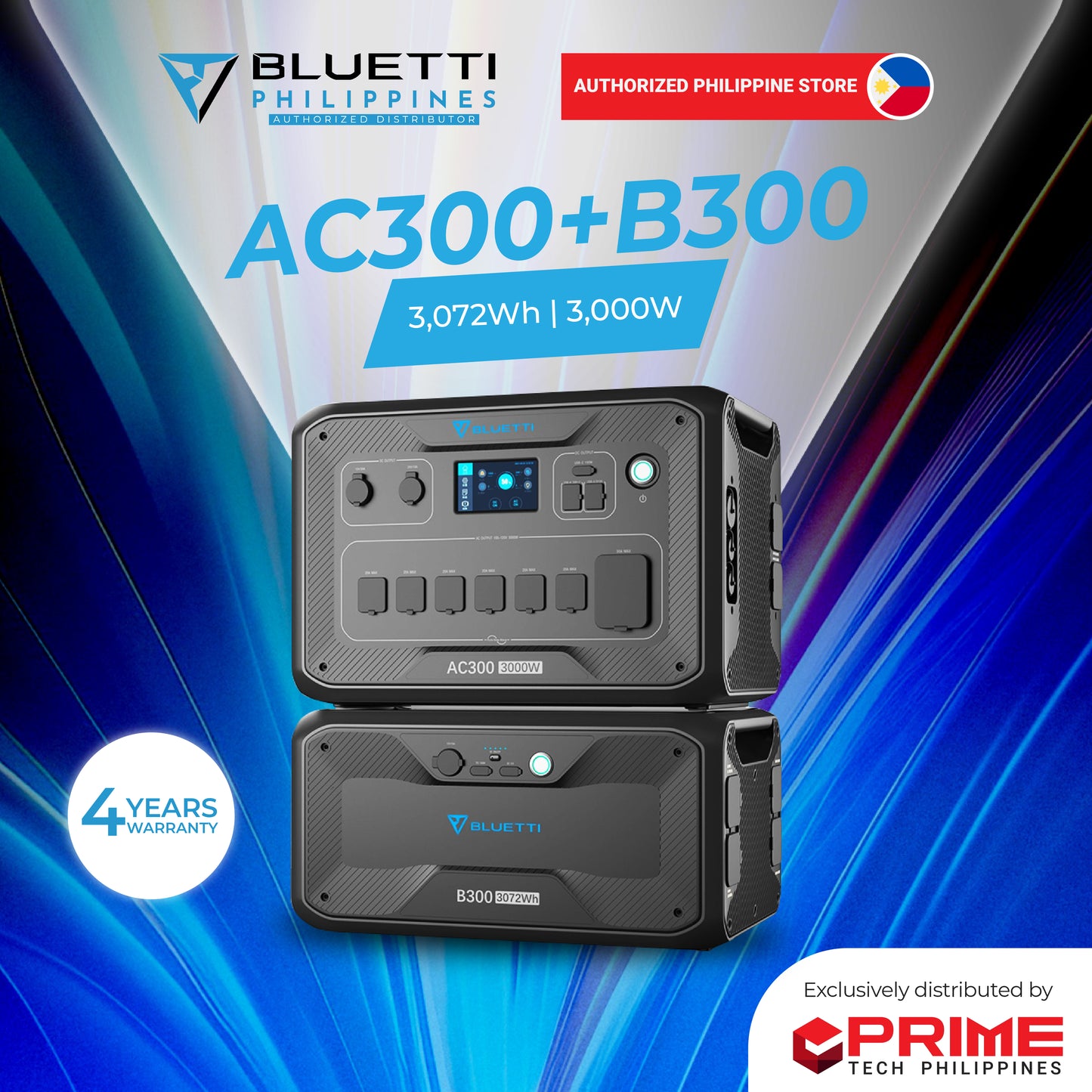

BLUETTI AC300 + 1*B300 - Home Battery Backup
BLUETTI AC300 + 1*B300 - Home Battery Backup
Regular price
₱199,800.00 PHP
Regular price
₱249,800.00 PHP
Sale price
₱199,800.00 PHP
Unit price
per
Couldn't load pickup availability
- 3,000W AC Pure Sine Wave Inverter (6,000W Surge)
- Expandable Up To 12,288Wh with 4×B300's
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar)
- 2400W Max. Solar Input
- 5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously)
- Smart App Control & Monitor
- 240V Connection Available
- 24/7 UPS Home Backup
Features
3000W Pure Sine Wave Inverter
With a quality AC inverter, the AC300 is capable and safe enough to take care of your high-power devices like air conditioners, fridges, mowers and laser cutting machines.
Expandable Power Supply
As BLUETTI's first 100% modular station, the AC300 can accept external battery packs and boost its capacity to a Max. 12,288Wh. From emergency backup to off-grid power source, this generator for home backup is sure to handle all your electricity needs.
5400W Fast Charging
Plug in the adapter and solar panels, then you can top up BLUETTI AC300 with astonishing 5400W input rate. Charge this powerhouse before an impromptu trip, and you're good to go.
5400W = 3000W AC + 2400W Solar( At least 2×B300 are REQUIRED)
5400W = 3000W AC + 2400W Solar( At least 2×B300 are REQUIRED)
5 Ways to Charge
Flexible to charge your AC300 via wall outlet, solar panels, car, generator and lead-acid battery, etc. Stay connected anytime, anywhere.
24/7 UPS Home Backup
With the BLUETTI Smart Home Panel, you can tie the AC300 power system to your home grid. Always get ready for power outages.
240V Connection Available
Pair 2×AC300 units and hook up 8×B300 batteries, you can build the unparalleled power center for home comfort. The BLUETTI Fusion Box Pro (P030A) is REQUIRED.
Multiple Outlets for Every Need
The NEMA TT-30 and 12V/30A DC port are perfect for RVers. Meanwhile, the wireless chargers enable you to charge compatible smart phones, earphones and so on.
Tech Specs
TECHNICAL SPECIFICATIONS
OUTPUT
AC Outlets: 6 x 220V/20A Outlets 1 x 120V/30A TT-30 3,000W In Total
Inverter Type: Pure Sine Wave
Surge Power: 6000W
USB-C Port: 1 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A 2 x 18W USB-A
12V* DC Outlets: 1 x 12V/30A (RV Outlet) 1 x 24V/10A (Car Outlet) *All Regulated.
Wireless Charging Pad: 2 x 15W Max. (For Each)
INPUT
AC Charging Cable Input: 3,000W Max.
Solar Input: 2,400W Max., VOC 12-150VDC, 12A
Car Input: 12/24V from Cigarette Lighter Port
Maximum Input: 5,400W, with AC and Solar Input Simultaneously
GENERAL
240V Split Phase Bonding: Yes
App Control: Yes, WIFI & Bluetooth
Scalability: Expandable W/Up to 4 x B300
Simultaneous Recharge & Discharge: Yes
Weight: 47.6lbs (21.6kg)
Dimensions (LxWxD): 20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature: -4-104℉ (-20-40℃)
Certification: UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS
Warranty: 48 Months (Enter to learn more about our warranty policy)
In The Box
FAQS
FAQS
Q1: How many B300 expansion batteries can I connect with AC300?
A: A single AC300 can take up to 4 B300 batteries for a capacity of 12,288Wh. Friendly Note: Only B300 can be connected to AC300. B230 can not be connected to AC300.
Q2: Does AC300 work with third-party expansion battery?
A: No. AC300 ONLY accepts BLUETTI B300 expansion battery.
Q3: Can I use AC300 alone?
A: No. There's no battery inside AC300 and it must work with B300.
Q4: Does AC300 support App Control?
A: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely, like switching the working mode and upgrading the firmware.
Q5: Can I use it as an uninterruptible power supply (UPS)?
A: Yes. It supports four UPS modes: 1. Standard UPS. 2. Time Control UPS (Pay less for higher electricity consumption). 3. PV Priority UPS (Recommended for regions with sufficient solar energy). 4. Customized UPS.
Q6: How do I connect this to my home main panel?
A: BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel*. Then connect AC300 to the Smart Home Panel.
* Sold separately.*
Q7: What is the UPS switching time?
A: There are two types of working conditions of UPS for AC300 system.
1) No delay for online UPS;
2) 20ms from standby UPS.
Q8: Can I use third-party solar panels to charge the AC300 system
A: Yes, if the solar panels' specs fall in
1) Total Voltage: 12-150V
2) Total Power: 2,400W Max. (From the two PV input ports)
3) Include MC4 connectors.
Q9: Can I use my solar roof to charge the AC300 system?
A. Yes, but please note your solar roof should have:
1. NO micro-inverter
2. an open-circuit voltage of 12-150V
3. Include MC4 connectors. However, when the OCV falls in 150-550V, you should use BLUETTI D300S* to step down the voltage and achieve solar charging.
* Sold separately.*
Q10: Can I connect two AC300 systems in series?
A. Yes. With BLUETTI P030A fusion box, you can connect two AC300 systems in series for 240V/6,000W output and a total capacity of 24,576Wh (4*B300 for each AC300).
*Sold separately.*
Q11: Is the AC300 power station waterproof?
A. No. Also, please do NOT store it in a humid environment for a long time.
Q12: Can it charge and discharge at the same time?
A. Yes.
Q13: How do I know whether my appliance can work well with the AC300 and B300 combo?
A. Calculate the total wattage of your devices. AC300 should work if the load doesn't exceed its rated 3,000W.
Q14: How long can it run my device?
Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency. For AC300, both DoD and η are 90%. If you run a 1,000W microwave oven with AC300+B300 combo, the running time will be: 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5hrs
Note: 1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.
Q15: What is the maximum input charging power of the BLUETTI AC300?
A. For AC300 with one B300: 3,000W Max. Via a 120V30A wall socket by a 30A AC charging cable (sold separately). For AC300 with more than one B300: 5,400W Max. Via 3,000W wall socket and 2,400W solar panels simultaneously.Q16: Is the AC300 system hot-swappable?
A. Yes. You can easily swap battery packs for continuous power use, and the system can hold 4 batteries at once.
Q17: Is it possible to replace the built-in battery?
A. No. If the battery inside your power station is faulty or even dead, please contact BLUETTI Customer Service.
