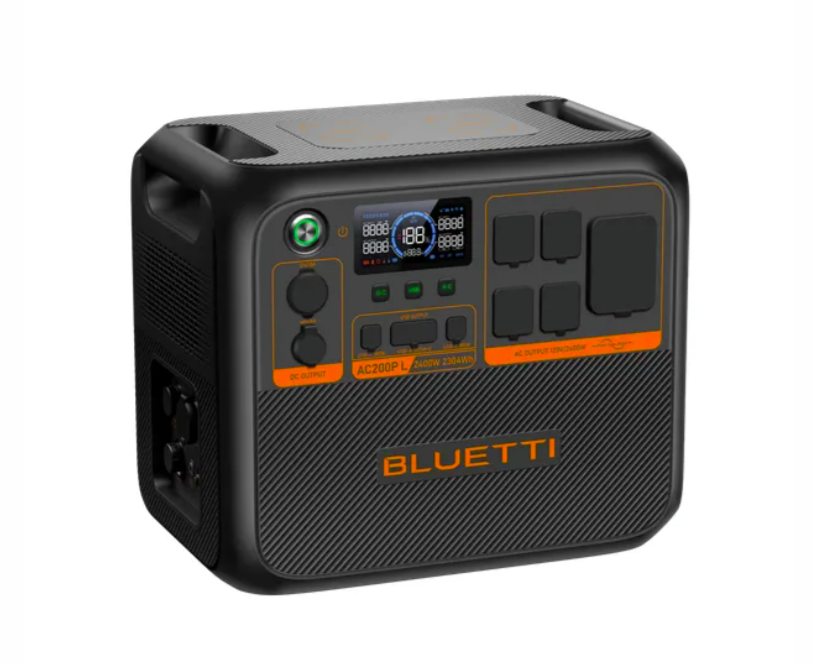

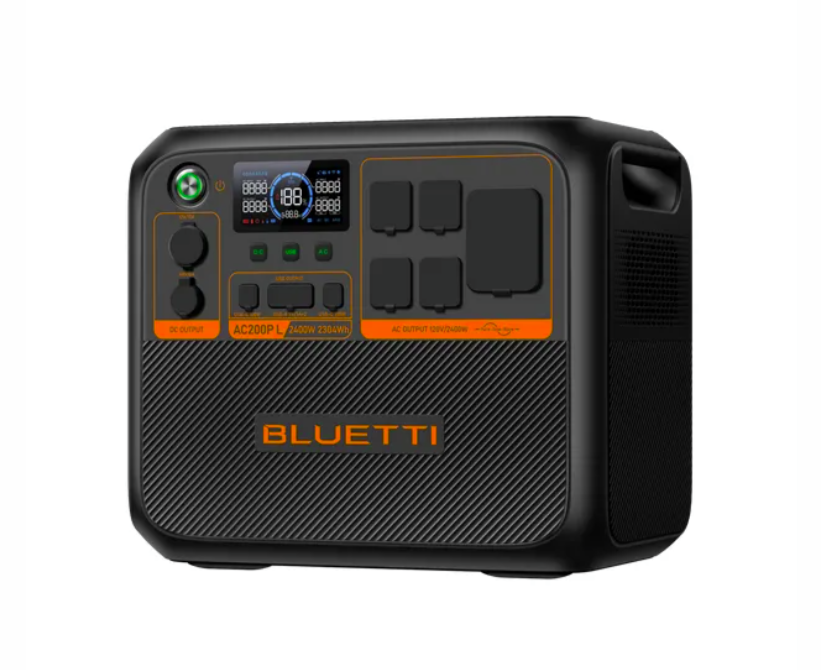

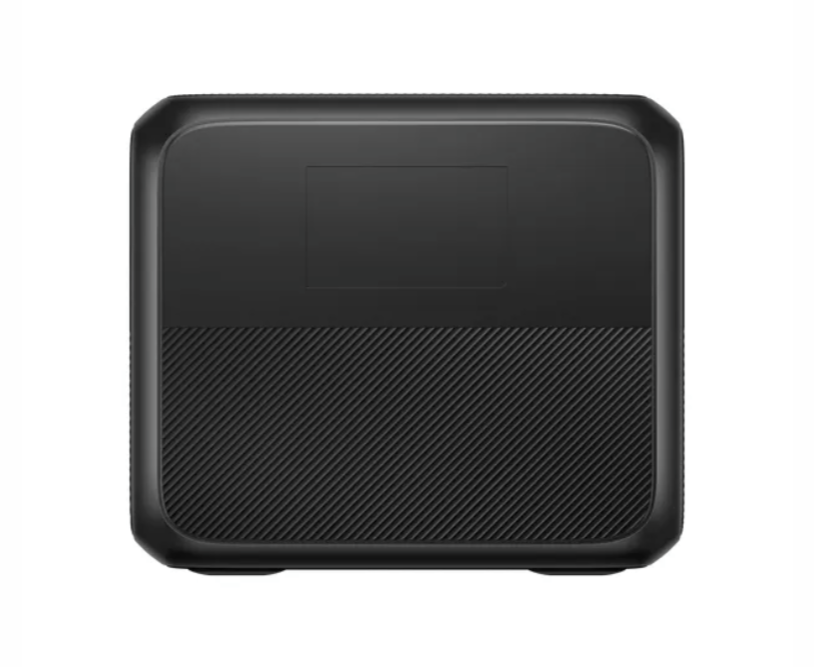

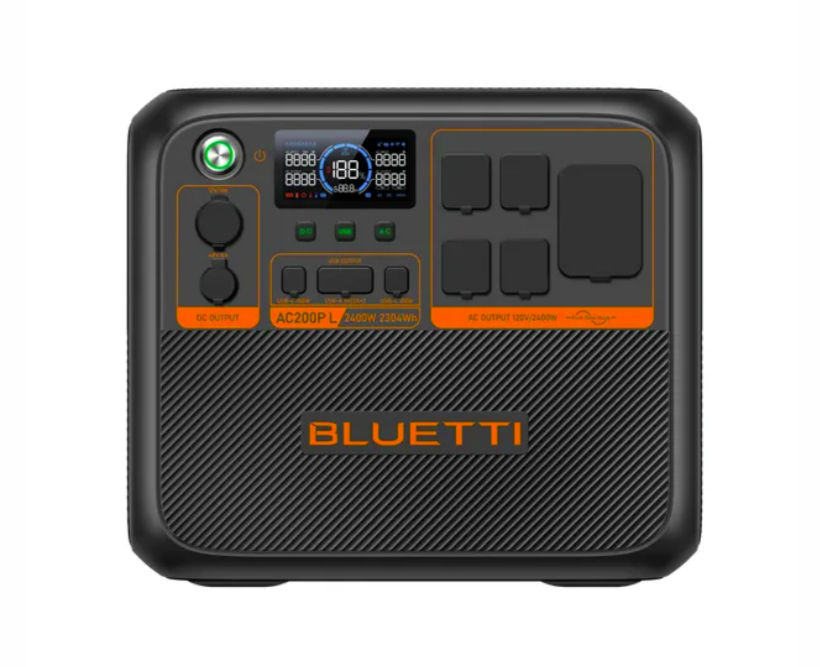

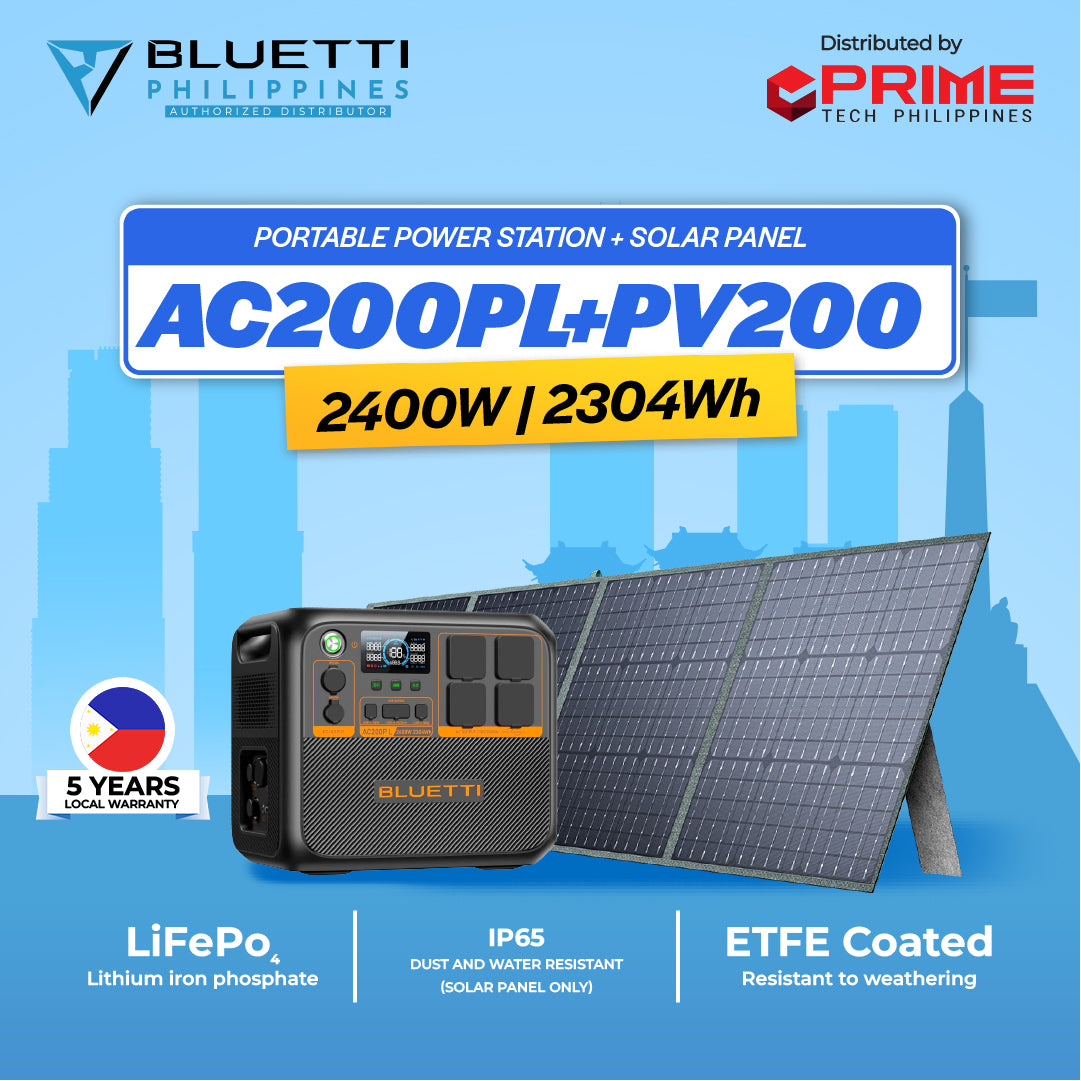

BLUETTI AC200PL Expandable Power Station | 2400W 2304Wh - PREMIUM SERIES

BLUETTI AC200PL Expandable Power Station | 2400W 2304Wh - PREMIUM SERIES

₱105,999.00 PHP
₱210,380.00 PHP ₱105,999.00 PHP
Sale Sold out

Achieve Super-Fast Charging to 80% in Just 1 Hour.

  • Expandable up to 8kWh.
  • Perfectly Compatible with B210P, B230, and B300 Expansion Batteries.
  • Delivers 2.400W Rated Power, Meeting the Needs of Various Loads in Your RV or Home.

Ready for 99% of Devices

Your Plug-and-play RV Power Solution

With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200PL, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source.

Charge Your RV Anytime, Anywhere

With a TT-30 port, you can power your RV directly from the AC200PL, making it a dependable energy source on wheels. You can charge your laptop, cellphone, and camera while you savor your meal in style.

Up to 8kWh Expandable Capacity

AC200PL is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8.448Wh. Making the full potential of limitless power has never been easier.

Fastest Charging Among 2kWh Power Stations

With accelerated 2.400W Turbo Charging, replenish to 80% capacity in just 1 Hour, and 1,5 hours for a full charge! AC200PL sets a new standard for most competitors in the market. Get ready to power up swiftly for uninterrupted use during your adventures.

Charge Your Way, Power Your Way

Flexible to get it charged via AC outlets, solar panels, car chargers, generator, or lead-acid batteries, you can stay powered and explore the unknown with confidence even far off the grid.

Specifications

BATTERY INFO

Capacity: 2304Wh (45Ah)
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3.000+ Cycles to 80% Original Capacity
Shelf-life: Recharge to 80% Every 3-6 Months
Management System: MPPT Controller, BMS, etc.

OUTPUT

AC Outlets: 4 ×230V/10.5A 2.400W In Total
Inverter Type: Pure Sine Wave
Surge Power: 2.500W
USB-C Port: 2 ×100W Max.
USB-A Port: 2 ×18W (Each Port)
12V DC Outlet: 1 ×12V/10A (Car outlet, regulated.)
48V DC Outlet: 1 ×48V/8A (RV Outlet)
Wireless Charging Ports: 2 ×15W

INPUT

AC Power Input (Turbo Mode): 2.400W Max.
Solar Input: 1.200W Max, 12V-145VDC, 15A
Car Input: 12/24V from Cigarette Lighter Port
Max Input: 2.400W

RECHARGE TIME

AC Charging Cable (950W Turbo Charging): ≈1,5 Hours
Solar Panel (s) (1.200W): ≈2,5 Hours (With prime sunshine, ideal orientation and low temperature)

GENERAL

Pass-through Charging: Yes
Weight: About 63,5lbs / 28,8kg
Dimensions (L ×W ×D): 420mm × 280mm × 366,5mm / 16,5in × 11in × 14,4in
Charging Temperature: 0°C-40°C / 32°F-104°F
Discharging Temperature: -20°C-40°C / -4°F-104°F
Storage Temperature: -20°C-40°C / -4°F-104°F
Warranty: 5 Years

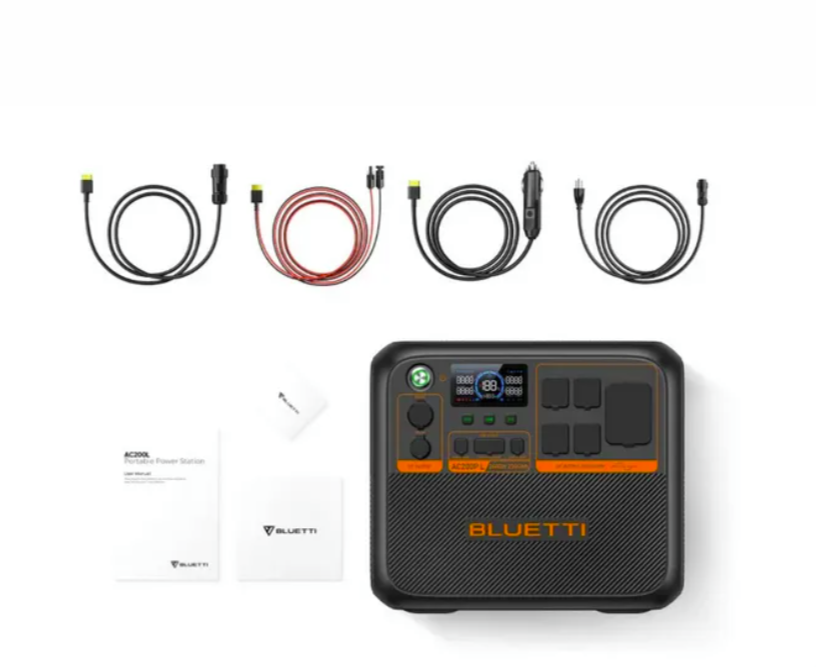

IN THE BOX

FAQS

Q1: What is the difference between the AC200PL and AC200MAX?
A: 1. Output power: 2.400W for AC200PL, while 2.200W for AC200MAX.
2. Max. Input: 2.400W (AC + DC / Solar) for AC200PL, while 1.400W (AC + PV) for AC200MAX.
3. AC200PL has lower noise level ≤50dB.
4. AC200PL requires no external charging adapter for AC charging.
5. App Control: AC200PL supports Bluetooth and WiFi, while AC200MAX only supports Bluetooth.

Q2: How many expansion batteries can I connect with the AC200PL?
A: AC200PL+ 2*B210P = 6.348Wh;
AC200PL+ 1* B230 = 4.096Wh;
AC200PL+ 2* B300 = 8.192Wh

Q3: Can I connect third-party expansion batteries to AC200PL?

A: No.

Q4: Does AC200PL support App control?
A: Yes. Once connected via Bluetooth or WiFi, the BLUETTI App enables you to control the AC200PL remotely, like switching the working mode and upgrading the firmware.

Q5: Can I use AC200PL as a UPS?

A: Yes. Within 20ms switching time.

Q6: What kind of solar panels should I choose for AC200PL?

A: Open Circuit Voltage: 12-145V
Input Power: 1.200W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈3,5hrs.
4x BLUETTI PV200: ≈3hrs.
2x BLUETTI PV350: ≈3,5hrs.
* For reference ONLY.

Q7: Is it possible to replace the built-in battery?

A: No. If the battery pack is faulty or even dead, please contact BLUETTI Support for further assistance.

Q8: Is the AC200PL power station waterproof?

A: No. So please do NOT store it in a humid environment for a long time for optimal performance.

Q9: Can it charge and discharge at the same time?

A: Yes. It supports pass-through charging.

Q10: Can I charge or discharge AC200PL in sub-zero temperatures?

A: You can charge the AC200PL to power your devices in cold weather, but avoid recharging them below freezing. The temperature ranges for AC200PL are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);

Q11: What appliances can AC200PL work well with?

A: Add up the total wattage of your devices and ensure it doesn't exceed AC200PL’s rated 2.400W.

Q12: How long can it run my device?
A: Running time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + AC200PL Self-consumption)
DoD refers to Depth of Discharge and η is local inverter efficiency. For AC200PL, DoD and η are 95% and 93%. The self-consumption of AC200PL is approximately 12W. If you run a 1.000W microwave oven with it, the running time will be:
2.304Wh × 95% × 93% ÷ （1.000W +12W）≈ 2hrs
Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.

Q13: What is the maximum input of the BLUETTI AC200PL?

2.400W via AC outlet and solar panels simultaneously.

Q14: Can I lay on its side to save space?

No. this may damage the internal structure. Please keep it upright during storage or moving.

Q15: Can I hot-swap expansion batteries to AC200PL?
Yes. You can easily swap battery packs for continuous power use, and the system can hold two batteries at once.
