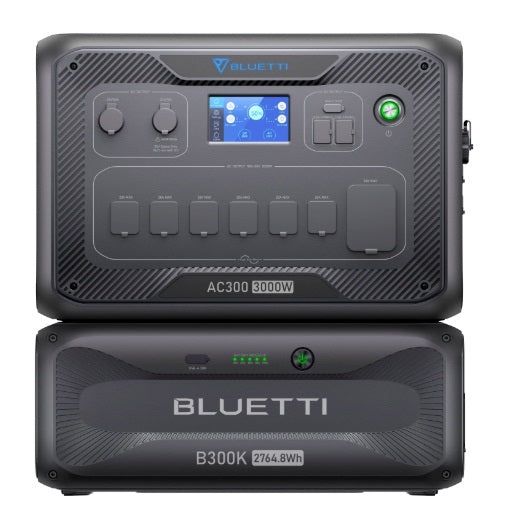

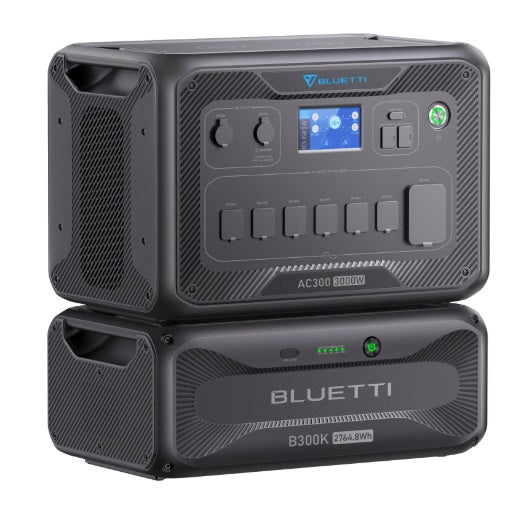

BLUETTI AC300+B300K | Home Battery Backup

BLUETTI AC300+B300K | Home Battery Backup

Regular price ₱159,999.00 PHP
Regular price ₱219,000.00 PHP Sale price ₱159,999.00 PHP
Sale Sold out
Product Model
  • 3,000W AC Output: Power most appliances effortlessly.
  • Split Phase Bonding: Achieve 240V output for heavy-duty devices.
  • Expandable Capacity: Tailor your energy storage up to 22,118.4Wh.
  • LiFePO₄ Battery: Reliable performance for over 10 years.
  • 24/7 UPS: Uninterrupted power during unexpected outages.
  • 2,400W Max. Solar Input: Harness abundant and sustainable solar energy.
  • 5,400W Max. Dual Charging: Ensure power is ready in no time.
  • 7 Ways to Recharge: Charge at your preference.
  • 4-Year Warranty: Enjoy peace of mind with dedicated service.



Features

Why Choose BLUETTI AC300?

Charge Your Power, Your Way

From the Wall:The 30A AC charging cable allows a maximum input of 3,000W, fully refilling AC300 + B300K in just 1.5 hours.

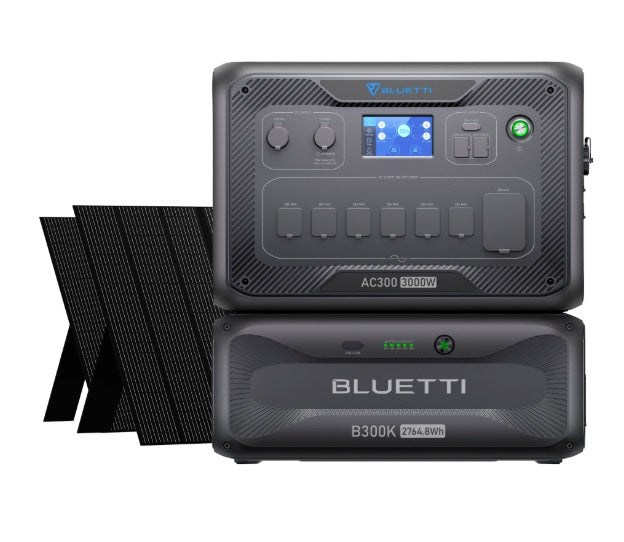

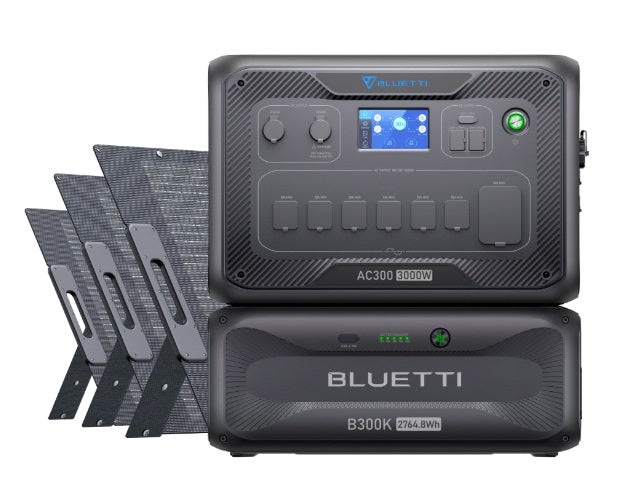

From the Sun:AC300 + B300K supports up to 2,400W solar* input, meaning that you can replenish this combo in 1.8-2.3 hours. * D300S is required for roof panel charging.

From Dual AC:With an extra T500*, AC300 + B300K is capable of 2,300W input, reaching 100% capacity in just 1.8 hours. * Sold separately.

From the Sun & Wall:Plug in the adapter and solar panels for up to 3,000W input, so you can also top up the AC300 + B300K for about 1.5 hours.

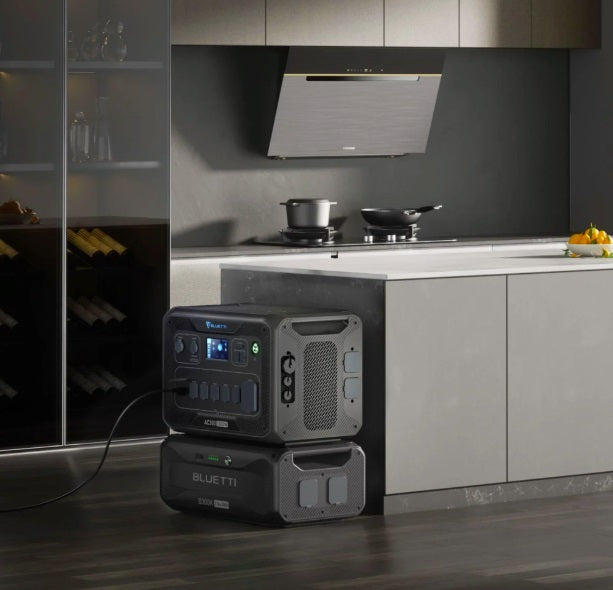

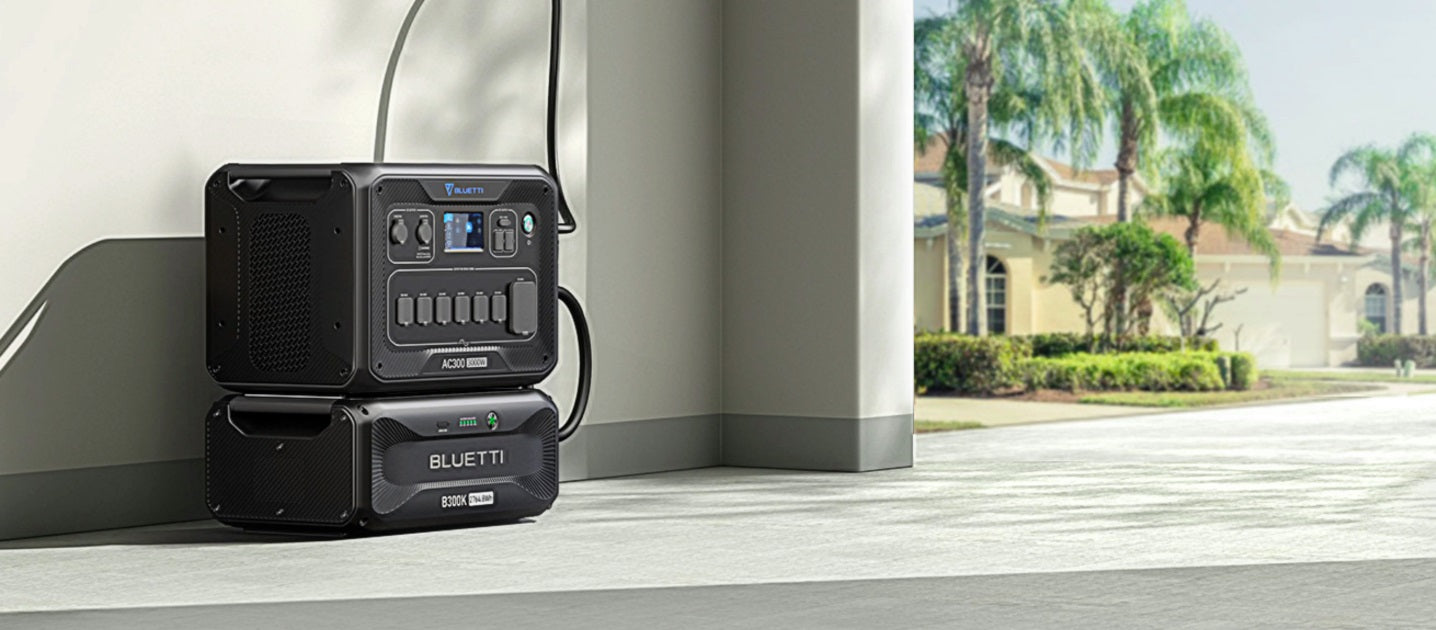

Whole-Home Backup

With the AC300 system integrated into your home, you'll have tons of energy to power your day-to-day living smoothly. From necessary appliances to critical devices like EV chargers, enjoy a steady and dependable energy flow that always has your back, no matter what.

Superpower for Heavy-duty Work

Combine 2 AC300 units in parallel via a P030A fusion box, you can run your 240V energy-intensive appliances effortlessly, like heaters, heat pumps, air conditioners, etc.


Maximize Savings with Peak-Load Shifting

Store energy during off-peak hours when prices are low, and use it when prices spike. This smart energy management not only reduces your utility bills but also ensures you have affordable power available when you need it most.

Instant Backup Protection, Consistent Home Comfort

When the power goes out, the EPS kicks in within just 20ms, ensuring your home and all essentials remain powered smoothly. Now, you don't have to fumble around in the dark!

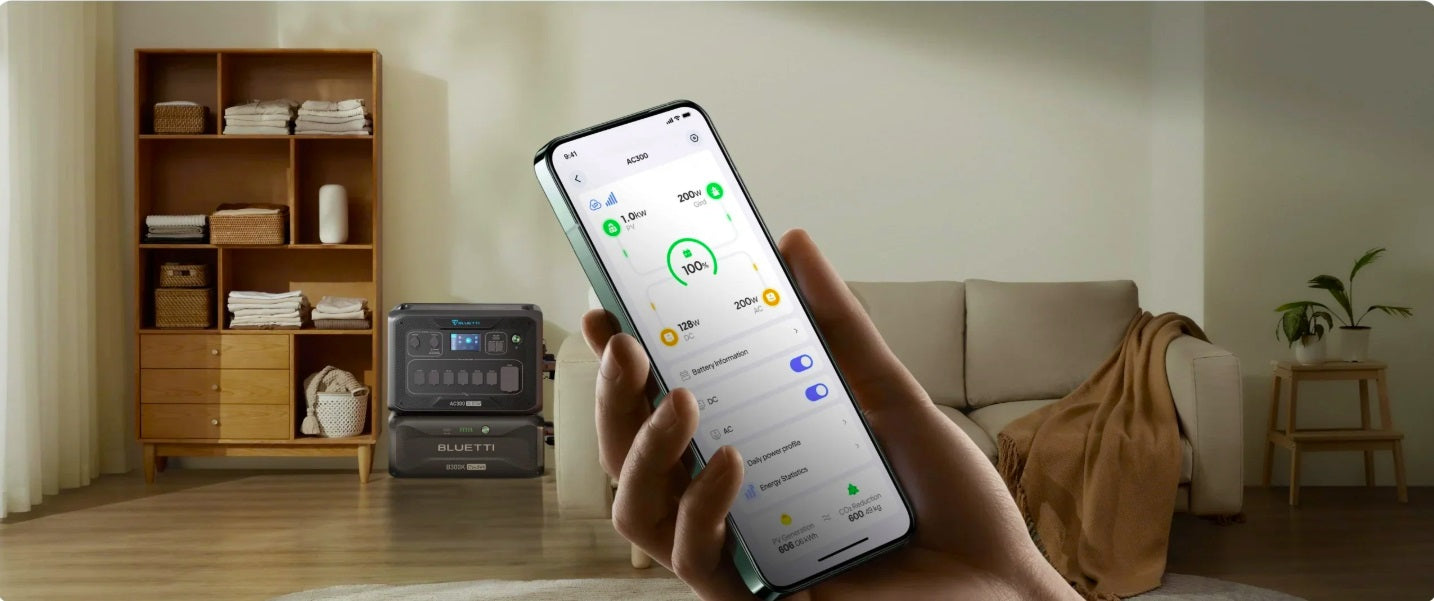

Power in Hand - App Control

Whether you're indoors or out, the intuitive app lets you gain insights into real-time power consumption, adjust operation modes, and even access firmware updates with just a few taps.



Tech Specs

TECHNICAL SPECIFICATIONS

OUTPUT

AC Outlets:
6 x 220V/20A Outlets
1 x 220V/30A TT-30
3,000W In Total

Inverter Type: Pure Sine Wave

Surge Power: 6000W

USB-C Port: 1 x 100W Max.

USB-A Port:
2 x 5V/3A USB-A
2 x 18W USB-A

12V* DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All Regulated.

Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

AC Charging Cable Input: 3,000W Max.
Solar Input: 2,400W Max., VOC 12-150VDC, 12A
Car Input: 12/24V from Cigarette Lighter Port
Maximum Input: 5,400W, with AC and Solar Input Simultaneously

GENERAL

240V Split Phase Bonding: Yes
App Control: Yes, Wifi&Bluetooth

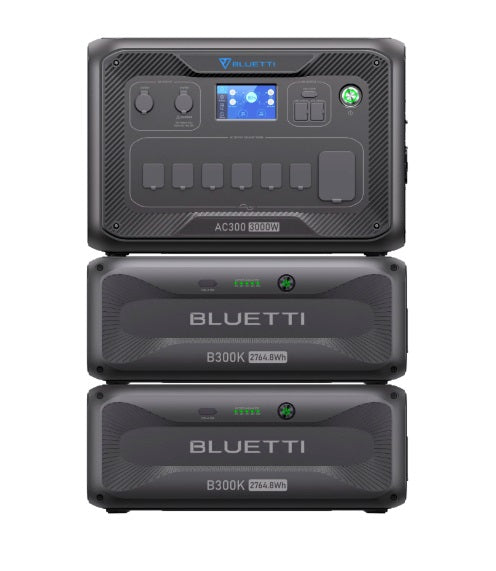

Scalability: Expandable W/Up to 4 x B300
Simultaneous Recharge & Discharge: Yes
Weight: 47.6lbs (21.6kg)
Dimensions (LxWxD): 20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature: -4-104℉ (-20-40℃)
Certification: UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS
Warranty: 48 Months (Enter to learn more about our warranty policy)

In The Box

Tech Specs

Specifications

BATTERY INFO

Model: B300K
Capacity: 2,764.8Wh (51.2V, 54Ah)
Type: LiFePO4 LiFePO₄ (Lithium Iron Phosphate)
Life Cycles: 4000+ Cycles to 80% Original Capacity

OUTPUT

USB-A Port: 12W Max., 5V / 2.4A
Capacity: 2,764.8Wh

GENERAL

Weight: 29.5kg (65.04lbs)
Dimensions (LxWxD): 52.5 × 32.7 × 20.9cm (0.67 × 12.87 × 8.23in)
Charging Temperature: 0°C to 40°C (32°F to 104°F)
Discharging Temperature: -20°C to 40°C (-4°F to 104°F)
Storage Temperature :
Up to 1 month: -20°C to 40°C (-4°F to 104°F)
Up to 6 months: -20°C to 25°C (-4°F to 77°F)
Working Humidity: 5% to 95%RH
Charging Current: 60A Max. (Current may decrease outside specified temperatures)
Discharging Current: 70A Max.
2 × Expansion Port: 58.4VDC Max., 90A Max.
Warranty: 4 Years
Compatibility: AC200L, AC200MAX, AC300, AC500


FAQS

FAQS

Q1: Overview of AC300 & B300K.

A:

AC300 | Power Station Tutorial:  Learn More

B300K | Expansion Battery Tutorial:  Learn More

Q2: What can I do with the touchscreen?

A: Check the AC300 touchscreen guide for details: Learn More

Q3: What cables come with the AC300 + B300K combo, and how long are they?

Standard:
AC300
15A AC Charging Cable: 59in/150cm
DC Input Cable: 59in/150cm
Car Charging Cable: 19.7in/50cm
B300K
P090D Battery Expansion Cable: 31.5in/80cm
Optional:
30A AC Charging Cable: 59in/150cm
Lead-acid Battery Charging Cable: 19.7in/50cm
12V/30A RV Cable Kit: 31.5in+19.7in/80cm+50cm
P150D to P090D Cable: 31.5in/80cm
AC Parallel Cable: 59in/150cm
Cigarette Lighter (24V) to DC5521 Cable: 28.3in/72cm
Split-phase Charging Cable: 59in/150cm
Split-phase Output Cable: 78.7in/200cm
USB-C to USB-C Cable: 78.7in/200cm
Note:

All measurements are for reference only.
Package details are subject to change without prior notice.

Q4: Can the AC300 be used alone?

A: No, the AC300 has no built-in battery. Please use it with the B300 or B300K battery.

Q5: Is the AC300 compatible with batteries from other brands?
A: The AC300 is compatible with B300 or B300K ONLY.

Q6: What cables are required to connect the AC300 to the B300K or B300?

Battery Expansion Cable (P090A).

Check the AC300 Battery Expansion guide for details: learn more

Q7: How many B300/B300K batteries can I connect to the AC300? Can I mix them?

A: You can connect up to 4 B300 or B300K batteries to the AC300, and they can be mixed.

Q8: What is the UPS switching latency?
A: 20ms from offline UPS.

Q9: Where can I buy the solar extension cable? Will it affect the solar input power?
A: You can purchase it on other platforms. We highly recommend 10 AWG or 12 AWG cables. Keep in mind that the longer the cable, the greater the power loss in the solar input.

Q10: How to install the AC300 + B300K system for home backup?
A: Check the instructions for details: instructions

Q11: 1) How many solar panels can be connected to AC300 + B300K? 2) How to connect them? 3) Can the solar input current exceed 12A? 4) Can the solar input power exceed 2,400W?

1) The AC300 supports dual MPPT, with each MPPT able to connect:

1 to 6 PV120 panels,
1 to 5 PV200 panels,
1 to 3 PV350 panels,
1 to 3 PV420 panels.
2) Series connecting is highly recommended for the best efficiency and durability. Avoid mixing different types of solar panels in the same circuit to ensure optimal efficiency and prevent potential damage.

3) Yes, but the extra current will be wasted.

4) Yes, however, please ensure the total voltage does not exceed 150V.

Q12: Does AC300 have a UPS function?

UPS Modes
Standard UPS - Recommended for areas with unstable grid power.
Time Control UPS - Set it to charge during off-peak hours and power your loads during peak times. Suitable for areas with fluctuating electricity prices based on time-of-use.
PV Priority UPS - Uses solar power first, ideal for sunny regions.
Customized UPS - Flexible to fit your specific energy needs.
