BLUETTI EP760 + 2*B500 Home Battery Backup

*The EP760+2*B500 bundle (installation excluded) will NOT cover the labor costs associated with the delivery and installation of the EP760. However, this bundle also does not include costs for materials related to any additional household power equipment (such as electricity meters, distribution panels, etc.), nor does it cover repair or replacement costs that may arise during the installation process. The exact costs will depend on the specifics of the installation case.

Limitations of the warranty

IMPORTANT NOTE: The BLUETTI EP760 Warranty DOES NOT cover damages that occur due to: Installation or commissioning by any person who is not an Authorized, Certified Dealer or Authorized, Certified Installer; Please do not perform any unauthorized installations on the product before contacting.

Join the Energy Revolution

The BLUETTI EP760 isn't just an energy storage system; it's key to slashing energy costs during peak hours, securing uninterrupted power during outages, and embarking on a journey toward an off-grid living style. The easy installation of EP760 ensures great convenience to access power freedom without spending a lot of time and money.

Efficient Power Management Made Easy

Integrate BLUETTI EP760 with your existing rooftop solar panels to harness free solar energy on sunny days, and power your appliances with unparalleled efficiency, even during the night or rainy days. By transforming from a power consumer to a power producer, you can take charge of your energy consumption like never before, thus significantly reducing your electricity bills.

Elegant & Durable

The BLUETTI EP760 comes with a robust IP65 rating, making it resistant to dust or moisture, ensuring unwavering performance even in your basement. Furthermore, its advanced noise reduction technology guarantees a whisper-quiet operation, with noise levels measuring less than 50 dB. Elevate your energy experience while enjoying the perfect blend of functionality and style with EP760.

The Home Power at Your Fingertips

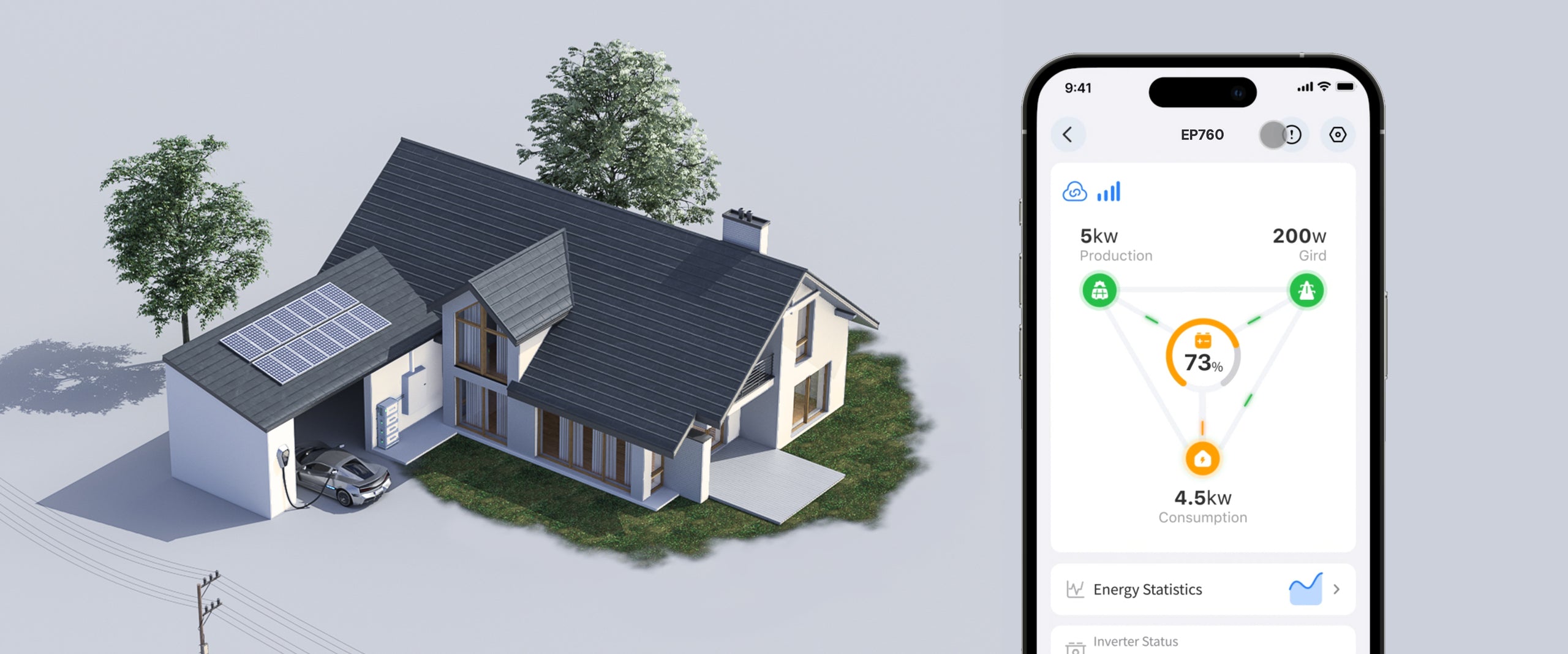

Everything about your EP760 is under control thanks to the intuitive BLUETTI App. Monitor real-time power consumption, seamlessly toggle between working modes, and conduct OTA updates, all from the palm of your hand, no matter where you are.

Customize Your Power Plant

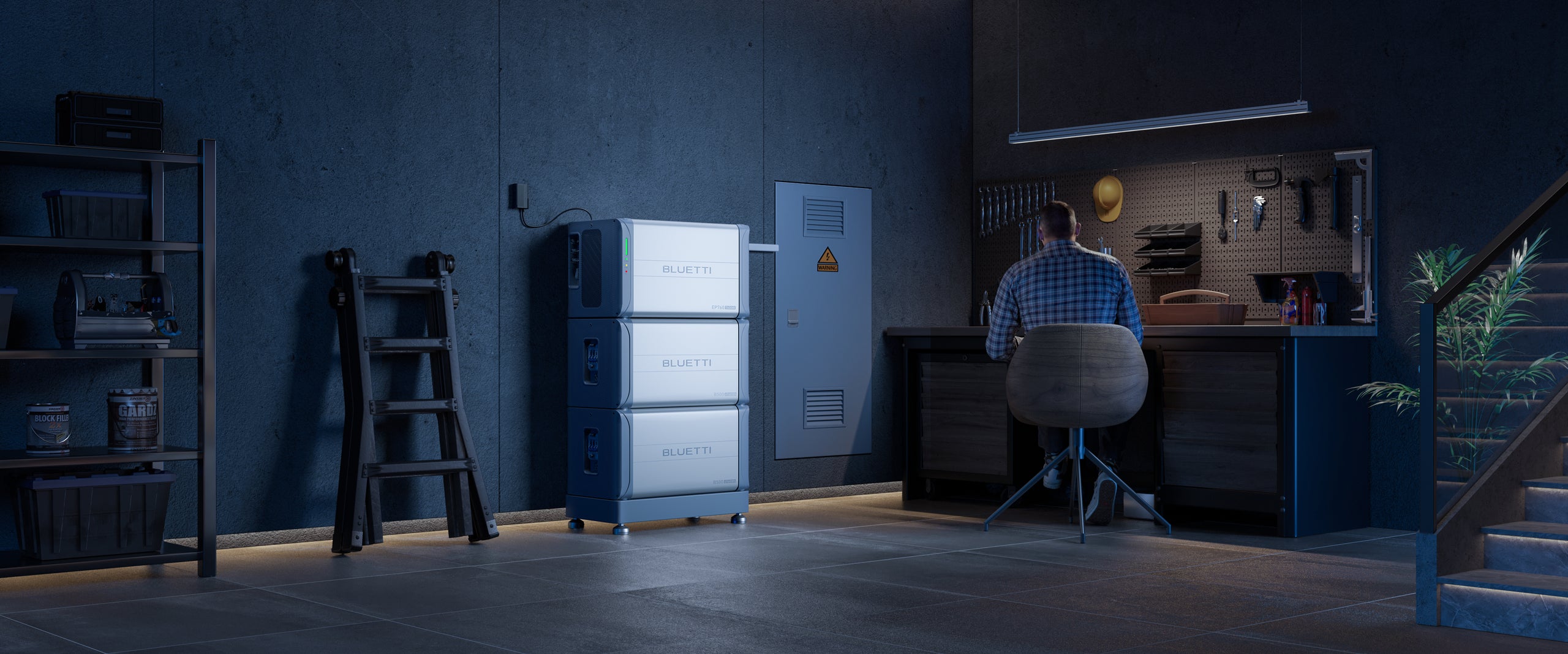

By stacking 2 to 4 B500 expansion batteries (4960Wh each) on the bottom, you can tailor a capacity of 9,9kWh to 19.8kWh according to your needs. Also, the EP760 inverter delivers an awe-inspiring output of up to 7600W to energize your appliances effortlessly.

Specifications

EP760 Inverter (General)

Capacity :

9,9kWh~19,8kWh

(W/ 1 EP760 & 2-4 B500)

Dimensions (L*W*H):

25,0 × 12,8 × 14,6inch /
636 × 325 × 370mm

Net Weight:

97lbs / 44kg

App Control:

BLUETTI App (WiFi/Bluetooth)

Warranty:

10 Years

IP Rating :

IP65

Noise:

≤50 dB (A)

Working Temperature:

-4℉~104℉ / -20℃~40℃

Wiring:

L / N / PE

Output Voltage:

230V

Input Frequency:

50Hz

UPS Time:

<10ms

Output Power :

7.600W

Inverter Certificates:

CE / IP65 / UKCA

Feed-in Tariff:

Yes

Grid Connection:

On-Grid / Off-Grid

---

EP760 (PV INPUT)

Recommended MAX PV Array Total Power:

13,5kWp

Recommended Max PV Array power:

4,5kWp each string

MPPT Channels:

9.000W(3 strings: 3.000W + 3.000W + 3.000W)

MPPT Voltage Range :

150V-500V

MPPT Efficiency:

97% Max.

---

B500 (General)

Dimensions (L*W*H):

25,0 × 12,8 × 13,3inch / 636 × 325 × 338mm

Net Weight:

127,87lbs / 58kg

Protection Grade:

-4℉~104℉ / -20℃~40℃

Battery Certificates:

CB / CE / FCC / ICES / IP65 / PSE / RCM / UKCA / UL1973 / UL9540A / UN38,3-2022

---

B500 (B

attery)

Battery Type:

LiFePO₄

Rated Capacity:

4.960Wh

Depth of Discharge (DoD):

90%

Short-circuit Protection:

Yes

---

In The Box
