Bluetti Philippines

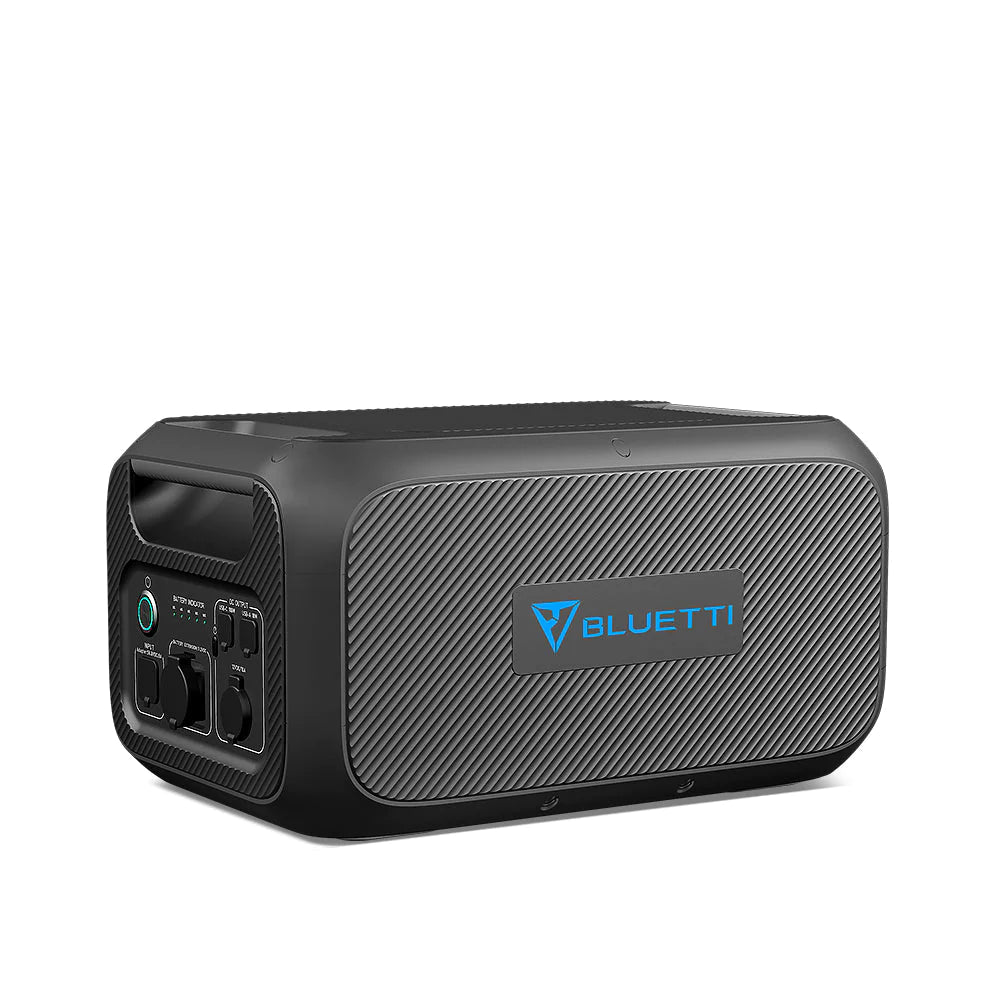

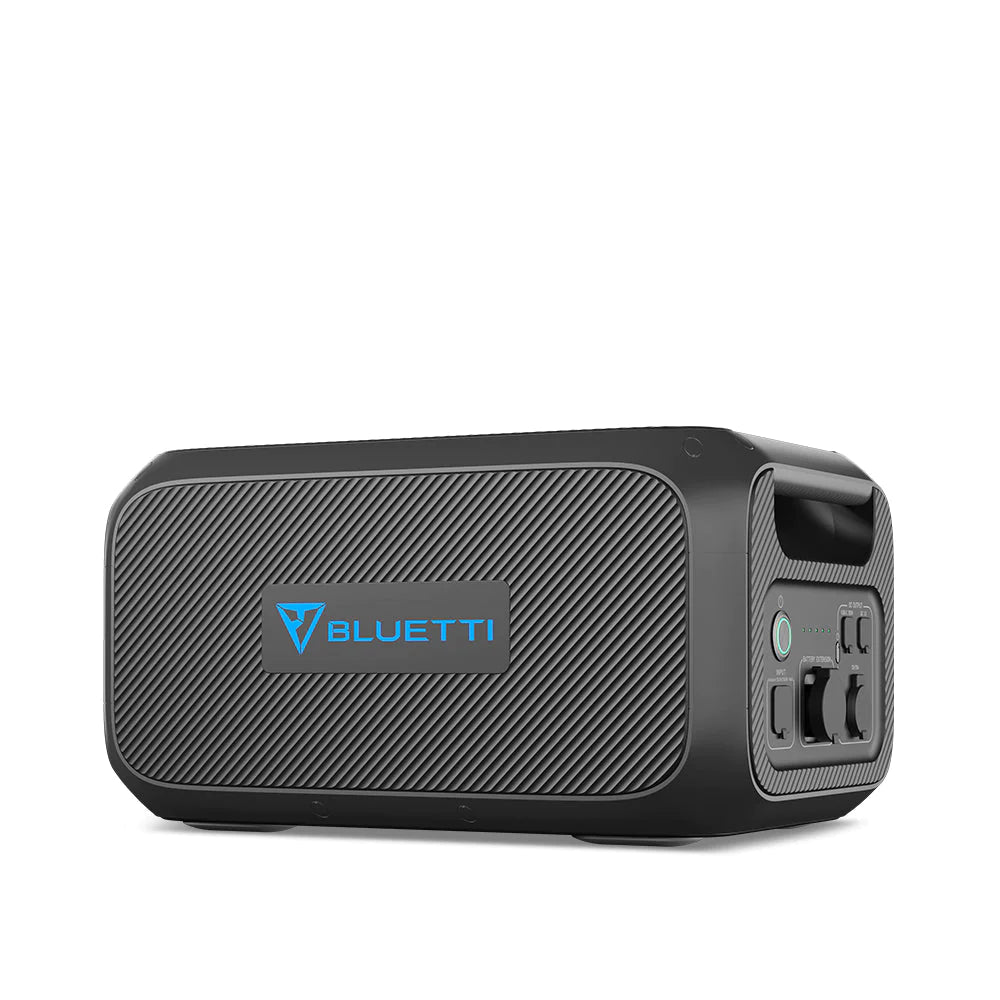

BLUETTI B230 Expansion Battery (2,048Wh)

BLUETTI B230 Expansion Battery (2,048Wh)

Regular price ₱68,900.00 PHP
Regular price ₱148,900.00 PHP Sale price ₱68,900.00 PHP
Sale Sold out
  • B230 equipped with 2048Wh capacity.
  • One 100W USB-C, a 12V/10A car output and a USB-A ports.
  • Versatile power inputs allow you to recharge no matter where you are.
  • Solar charging, car charging and lead-acid battery charging need to be realized through D050S



Features

Never Run out of Power

BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC, car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.

Versatile Power Source

The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.

Give Your Devices More Runtime

B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.

Home Backup and Trip Power Bank

The AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.

Never Run Out of Power

Suitable for various occasions



Tech Specs

TECHNICAL SPECIFICATIONS



BATTERY INFO

Capacity: 2,048Wh (51.2V, 40Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc.



OUTPORTS

USB-C Port: 1 x 100W Max.

USB-A Port: 1 x 18W USB-A

12V DC Outlets: 1 x 12V/10A (Car Outlet)

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc.



INPUT

AC Adapter Input: 500W Max.

Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)

Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) Max Input: 500W



RECHARGE TIME

AC Adapter (400W): ≈5.5~6 Hours

Solar (500W): ≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) Max


GENERAL

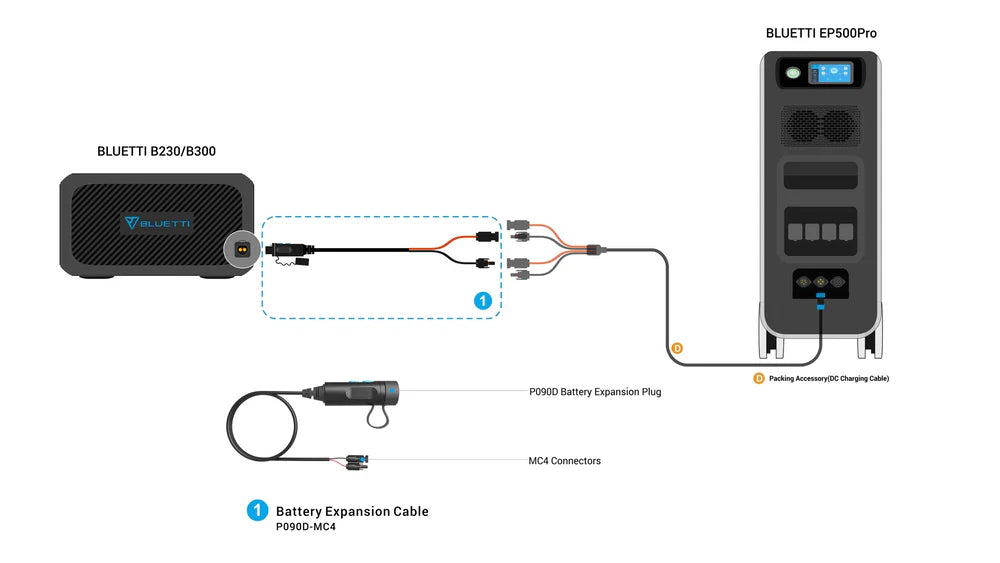

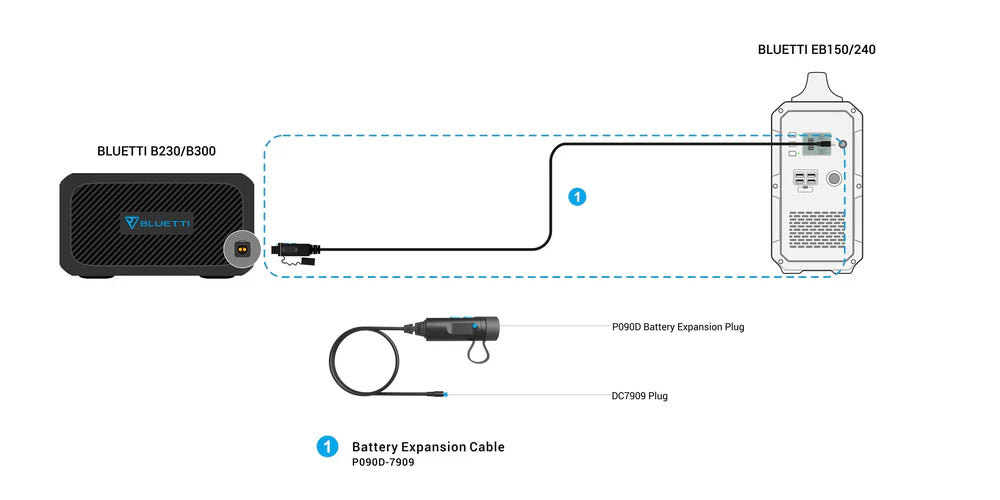

Compatibility: AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)

Pass-through Charging: Yes

Weight: 48lbs (21.8kg)

Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature: 32°F-104°F (0-40°C)

Storage Temperature: -4-104℉(-20-40℃)

Certifications: UL, CEC, DOE, FCC, CA Prop 65


Warranty: 48 Months (Learn more about BLUETTI warranty policy)


FAQS

FAQS

Q1: Can the B230 battery modules be used alone?

A: Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.

Q2: How many B230 battery modules can connect with AC200Max?

A: Up to 2xB230 battery modules can connect with AC200Max.

Q3: How many B230 battery modules can connect with AC300?

A: AC300 can only connect with B300 battery module.

Q4: How many B230 battery modules can connect with AC200/P?

A: Up to two B230. One via the solar input port by a converter cable, and another via the AC adapter inlet.

Q5: What are the charging methods for the BLUETTI B230?

A: B230 can be recharged by:

1)500W AC adapter (Sold separately)
2) Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.
View full details
