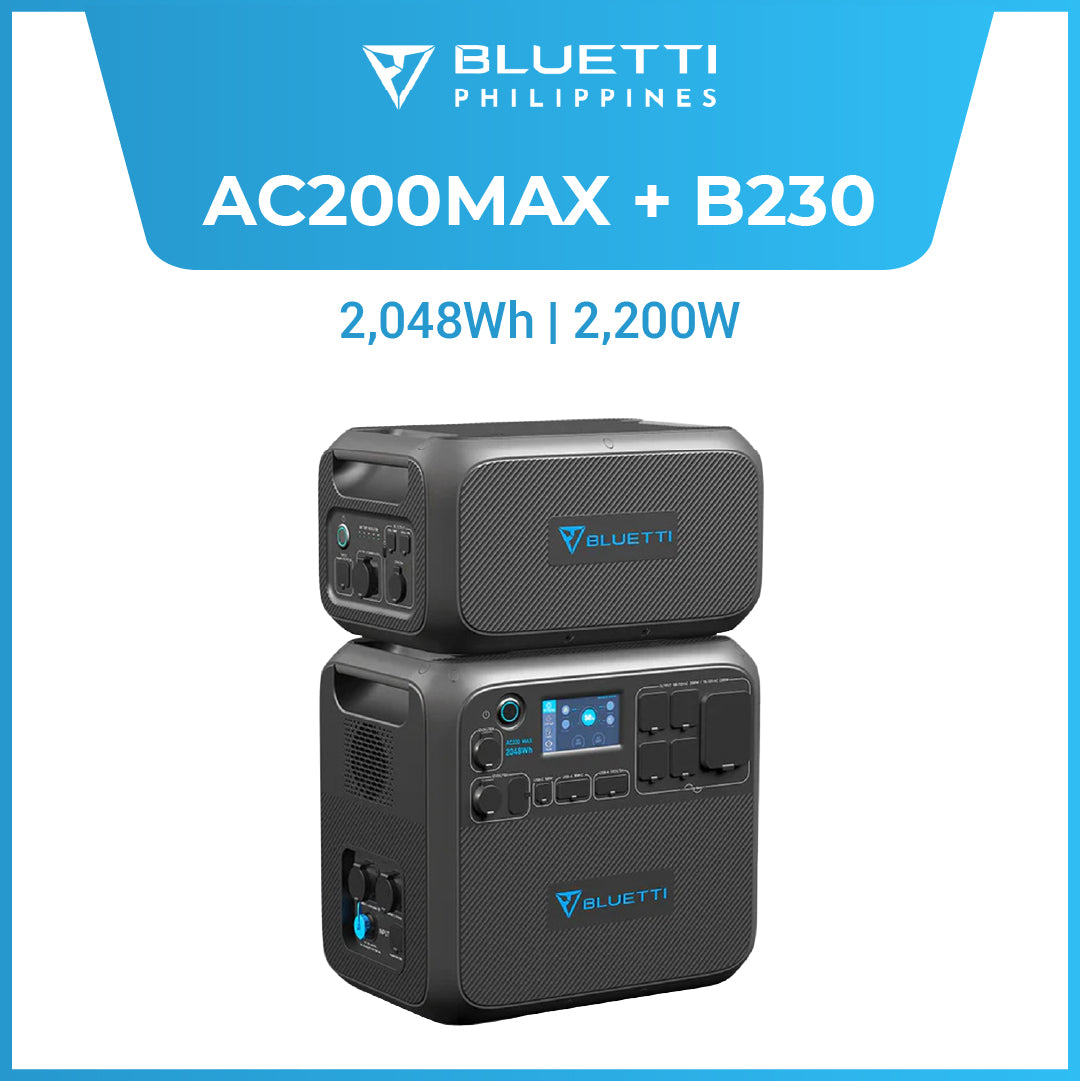

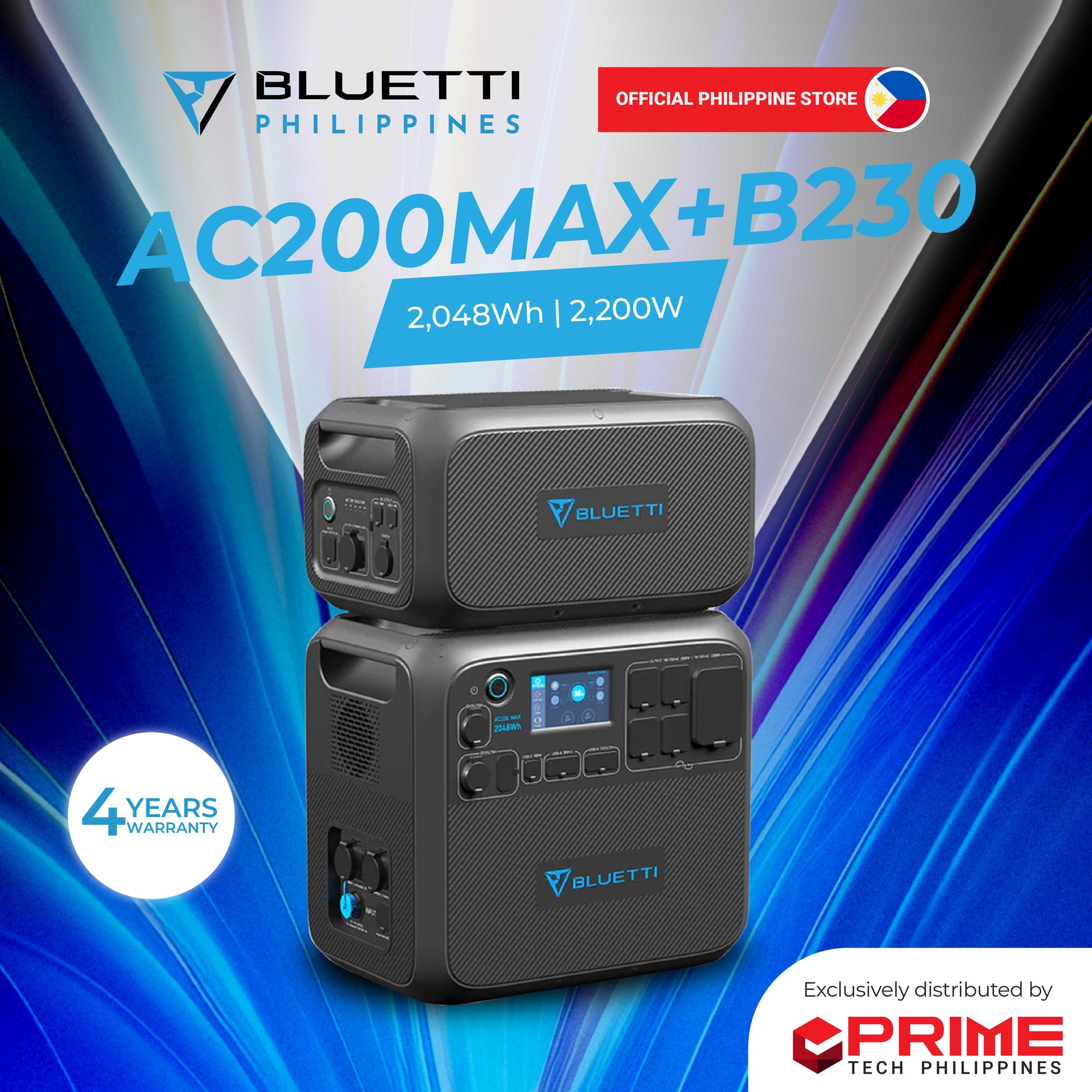

BLUETTI AC200MAX Expandable Power Station (2,200W) + BLUETTI B230 Expansion Battery (2,048Wh)

BLUETTI AC200MAX Expandable Power Station (2,200W) + BLUETTI B230 Expansion Battery (2,048Wh)

₱156,000.00 PHP
₱338,700.00 PHP ₱156,000.00 PHP
Sale Sold out

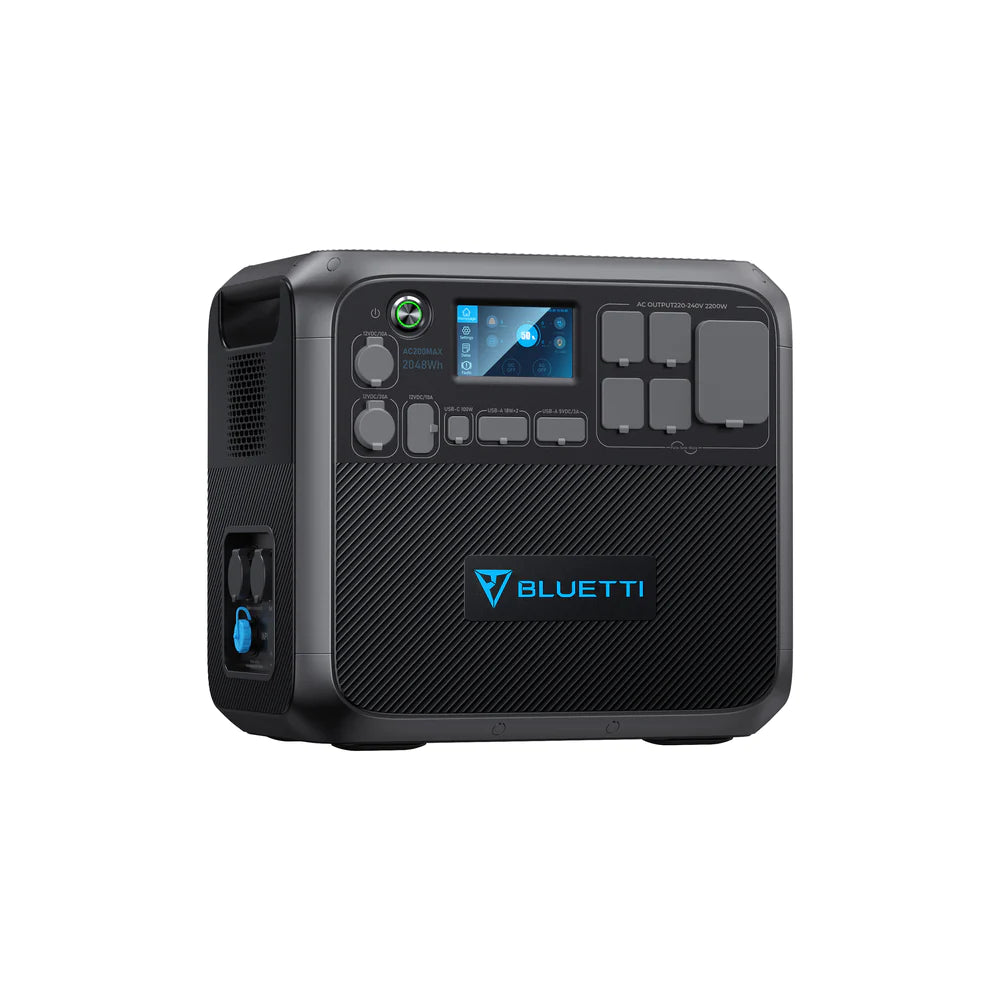

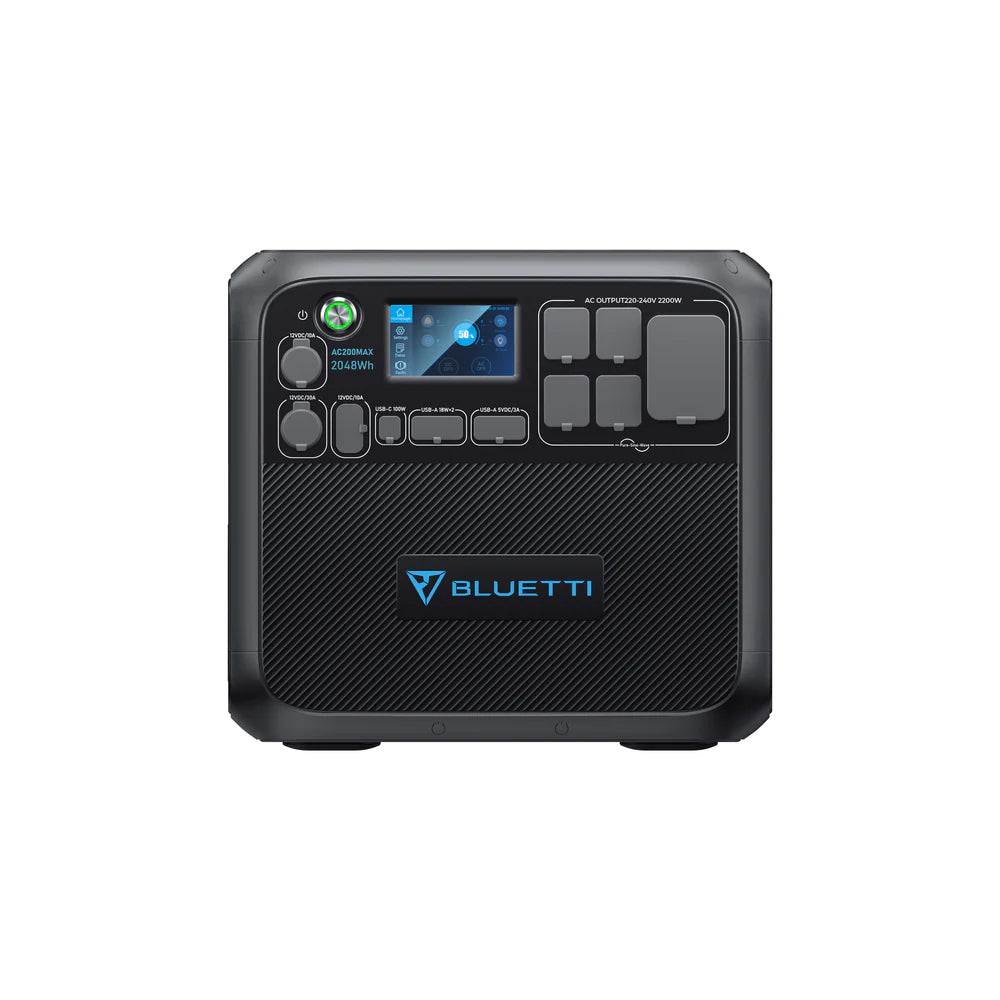

BLUETTI AC200MAX Expandable Power Station - 2,200W

  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
  • 2,048Wh Capacity
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
  • 900W Max. Solar Input
  • 1400W Max. Fast Dual Charging (Solar + AC Adapter)
  • Smart Control & Monitor in BLUETTI App
Features

FEATURES

Less To Spend, More To Love

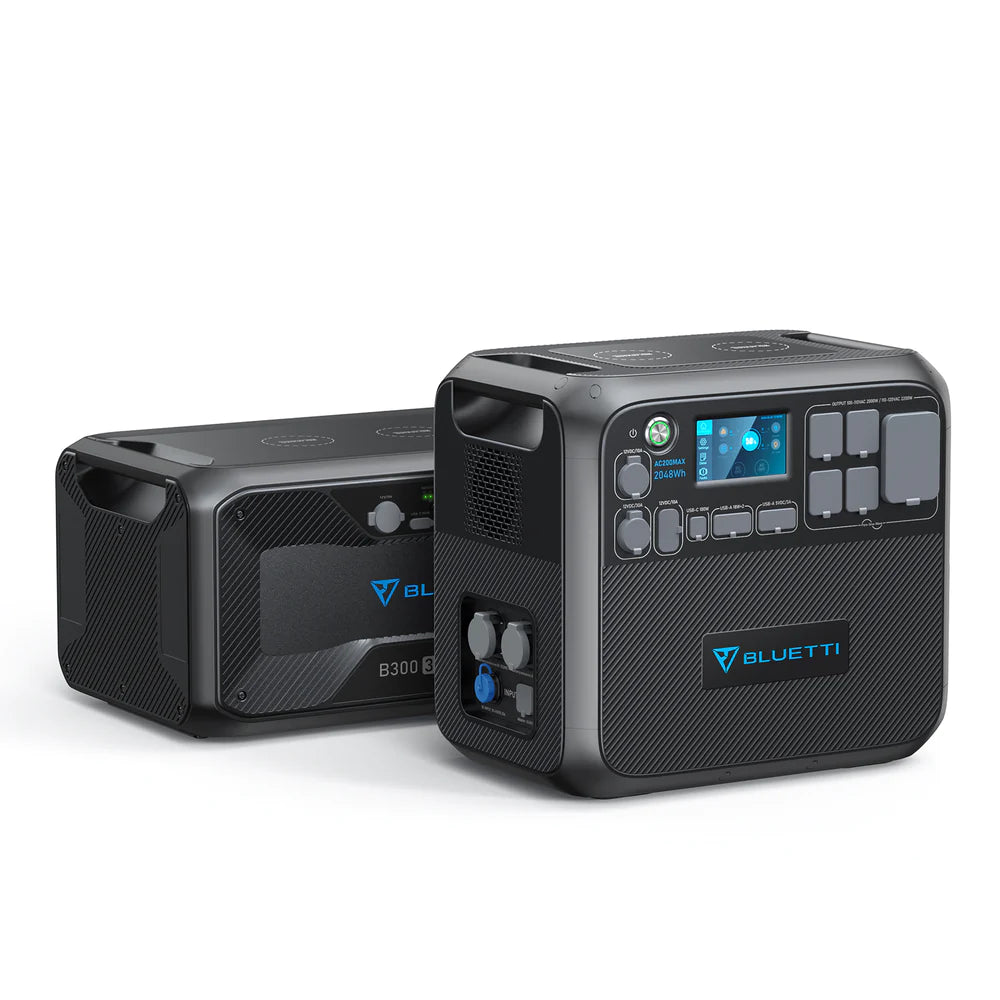

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

Get Charged In Anyway You Prefer

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

Small Change, Huge Leap

The AC200 Max can now take one module via its solar input port with a converter cable for extra capacity!

Incomparable Outlet Versatility

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.


Tech Specs

TECHNICAL SPECIFICATIONS


BATTERY INFO

Capacity: 2,048Wh (51.2V, 40Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc



OUTPUT

AC Outlets: 4 x 220V/20A Outlets 1 x 120V/30A NEMA TT-30 2200W In Total

Inverter Type: Pure Sine Wave

Surge Power: 4800W

USB-C Port: 1 x 100W Max.

USB-A Port: 2 x 5V/3A USB-A 2 x 18W USB-A

12V DC Outlets: 1 x 12V/30A (RV Outlet) 1 x 12V/10A (Car Outlet) 2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.

Wireless Charging Pad: 2 x 15W Max. (For Each)



INPUT

AC Adapter Input: 500W

Solar Input: 900W Max., VOC 10-145VDC, 15A

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Car Input: 12/24V from Cigarette Lighter Port

Max Input: 1,400W, with AC+Solar Input



RECHARGE TIME

AC Adapter (500W): 5.5~6 Hours

Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

AC Adapter + Solar (1400W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)

Dual AC Adapters (1000W): ≈3~3.5 Hours (Extra adapter is REQUIRED)



GENERAL

240V Split Phase Bonding: No Need 240V power source? Explore here.

Scalability: Expandable w/ Up to 2 x B230 or 2 x B300

Pass-through Charging: Yes

Weight: 61.9lbs (28.1kg)

Dimensions (LxWxD): 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)

Operating Temperature: -4-104℉ (-20-40℃)

Storage Temperature: 14-113℉ (-10-45℃)

Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65

Warranty: 48 Months (Learn more about BLUETTI warranty policy)




BLUETTI B230 Expansion Battery | 2,048Wh

  • B230 equipped with 2048Wh capacity.
  • One 100W USB-C, a 12V/10A car output and a USB-A ports.
  • Versatile power inputs allow you to recharge no matter where you are.
  • Solar charging, car charging and lead-acid battery charging need to be realized through D050S

TECHNICAL SPECIFICATIONS



BATTERY INFO

Capacity: 2,048Wh (51.2V,40Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc.



OUTPORTS

USB-C Port: 1 x 100W Max.

USB-A Port: 1 x 18W USB-A

12V DC Outlets: 1 x 12V/10A (Car Outlet)



INPUT

AC Adapter Input: 500W Max.

Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)

Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
Max Input: 500W




RECHARGE TIME

AC Adapter (400W): ≈5.5~6 Hours

Solar (500W): ≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours


GENERAL

Compatibility: AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)

Pass-through Charging: Yes

Weight: 48lbs (21.8kg)

Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature: 32°F-104°F (0-40°C)

Storage Temperature: -4-104℉(-20-40℃)

Certifications: UL, CEC, DOE, FCC, CA Prop 65

Warranty: 48 Months (Learn more about BLUETTI warranty policy)


FAQS


FAQS


Q1: How many BLUETTI B300 or B230 expansion batteries can connect with the AC200MAX?
A: Two B300 for 8,192Wh capacity.
Two B230 for 6,144Wh capacity.


Q2: Can I connect third-party expansion batteries to AC200MAX?
A: No. AC200MAX ONLY accepts BLUETTI B230 or B300 expansion batteries.

Q3: Does AC200MAX support App control?
A: Yes. Once connected via Bluetooth, the BLUETTI App will enable you to control the AC200MAX remotely, like switching the working mode and upgrading the firmware.


Q4: Can I use AC200MAX as a UPS?
A: No.


Q5: What kind of solar panels should I choose for AC200MAX?
A: PV input requirements for AC200MAX:
Open Circuit Voltage: 10-145V
Input Power: 900W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈3.5hrs.
4x BLUETTI PV200: ≈3hrs.
2x BLUETTI PV350: ≈3.5hrs.
* For reference ONLY.


Q6: Can I connect two units of AC200MAX together for more power (240V Split Phase Bonding)?
A: No.


Q7: Is the AC200MAX power station waterproof?
A: No. Also, please do NOT store it in a humid environment for a long time.


Q8: Can it charge and discharge at the same time?
A: Yes.


Q9: Can I use or charge AC200MAX in sub-zero temperatures?
A: Temperature ranges for AC200MAX are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
Storage: -20-40℃ (-4-104℉).
Technically, it can power electrical devices under such situations, but please avoid charging it.


Q10: How do I know whether my appliance can work well with the AC200MAX?
A: Calculate the total wattage of your devices. AC200MAX should work if the load doesn't exceed its rated 2,200W.


Q11: How long can it run my device?
A: Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency.
For AC200MAX, both DoD and η are 90%. If you run a 1,000W microwave oven with it, the running time will be:
2,048Wh × 90% × 90% ÷ 1,000W ≈ 1.65hrs
Note: 1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.


Q12: What is the maximum input charging power of the BLUETTI AC200MAX?
A: 1,400W Max. Via 500W wall socket and 900W solar panels simultaneously.


Q13: Can it be laid on its side to save space?
A: No Long-term placement will make the internal structure loose, it is recommended to place the machine upright.


Q14: Can I hot-swap expansion batteries to AC200MAX?
A: Yes. You can easily swap battery packs for continuous power use, and the system can hold two batteries at once.


Q15: Is it possible to replace the built-in battery?
A: No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.


Q16: What is the difference between the AC200MAX and AC200P?
The main differences are:
1. Output power and capacity: 2,000W AC power and 2,048Wh capacity for AC200MAX, while 2,000W and 2,000Wh for AC200P.
2. Max. Input: 1,400W for AC200MAX, while 1,200W for AC200P.
3. Output Port: AC200MAX has a 12V/30A NEMA TT-30 port.
4. App Control: AC200MAX supports BLUETTI App control.
