Tech Specs
BATTERY INFO
Battery Capacity2764,8Wh (51,2V/54Ah)
Battery TypeLiFePO₄

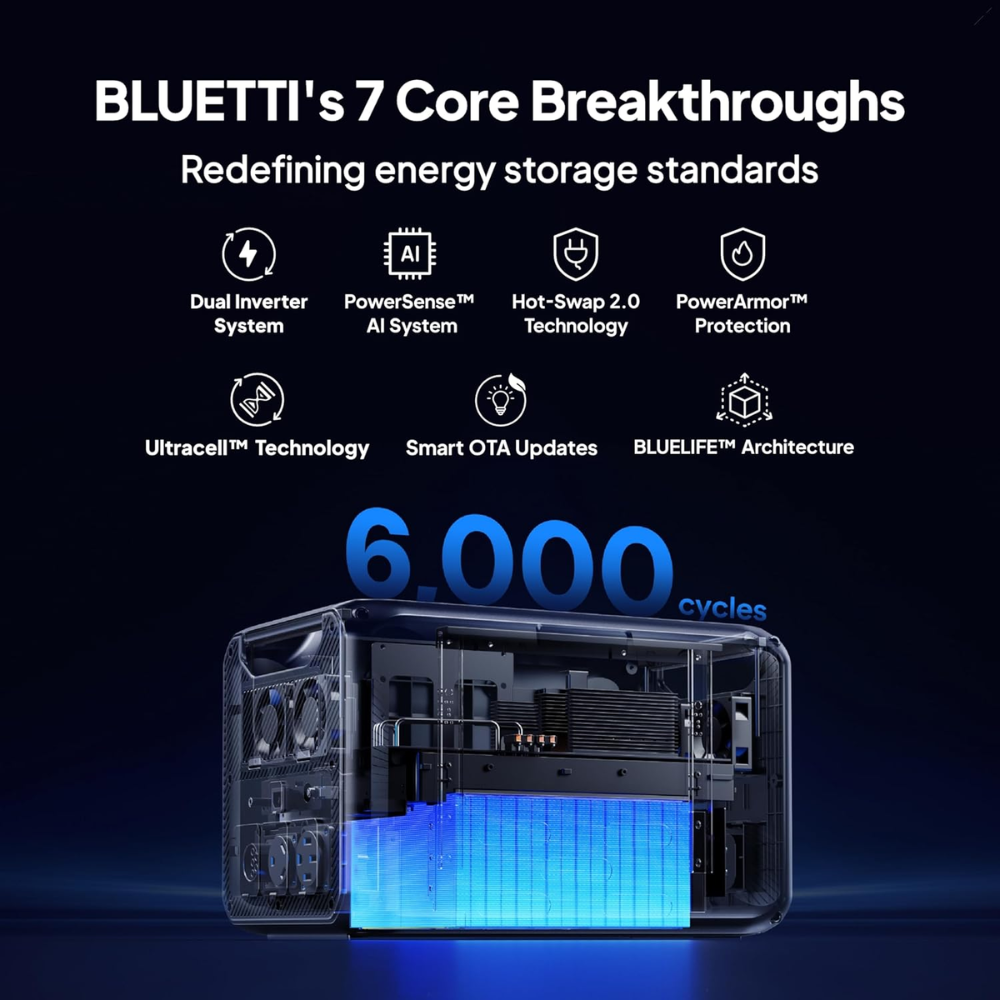

Life Cycles6.000+ Cycles to 80% Original Capacity
Shelf-lifeRecharge to 40%-60% Every 3-6 Months
Management SystemMPPT Controller，BMS，etc.
OUTPUT

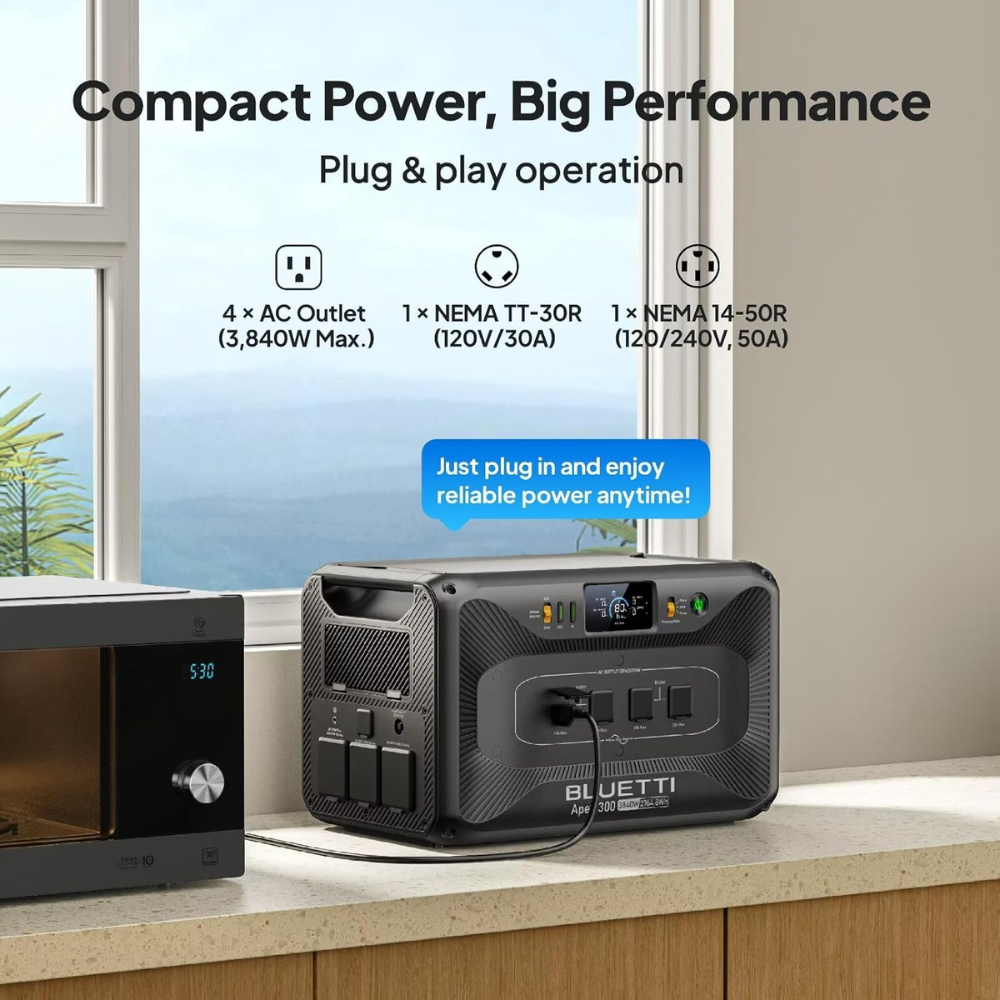

AC Outlets3.840W Max. in total, 230V, 16,7A Max., 50/60 Hz (16A Max. per outlet)
Inverter TypePure sine wave
Lifting Power7.680W
Cigarette Lighter Port / DC5521 (Output (DC)*)2 x 12V/10A; 24V/5A Car Port 2 x 12V/10A; 24V/5A DC5521 * Requires a Hub D1 which is rated at 700W.
USB-C Port2 x 100W Max. * Requires a Hub D1 which is rated at 700W.
USB-A Port2 x 15W, 5V/3A * Requires a Hub D1 which is rated at 700W.
Anderson Port1 x 12V/50A ; 24V/25A * Requires a Hub D1 which is rated at 700W.
INPUT
AC Charging3.840 W Max. (80% in 45 mins @ 59°F to 77°F /15°C to 25°C)* *Requires Hub A1
AC Input (Standard)2.300W Max., 230V, 50Hz / 60Hz, 10A Max.
AC Input (P050A)230V, 50A Max. (Charging + Bypass)

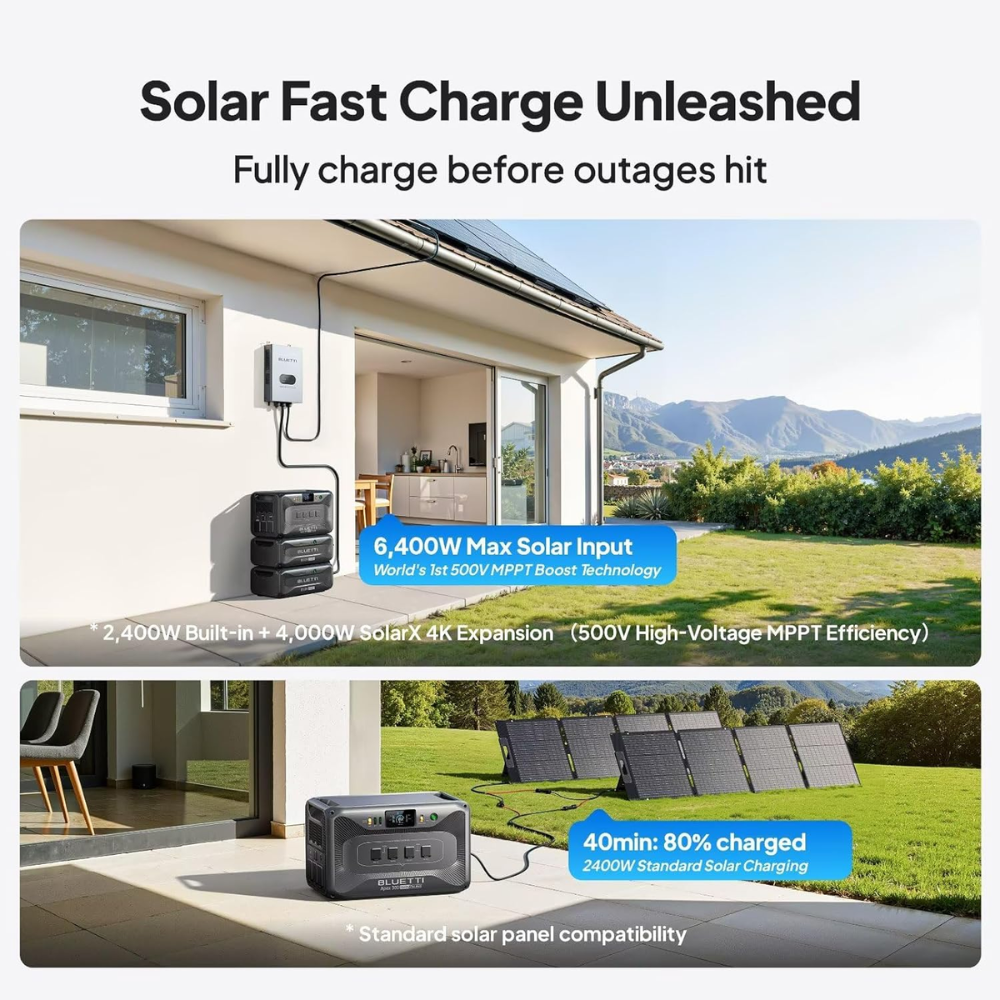

Solar Input1200W*2, 12-60VDC, 20A*2
Car Input12V or 24V via cigarette lighter port
Maximum InputApex 300: 3.840W Max Apex 300 + 1~6 B300K: 6.240W Max.
GENERAL
App ControlYes, via WiFi & Bluetooth
ScalabilityUp to 6 × B300K / B300S / B300/B500K per unit
Pass-through ChargingYes
Weight83,78lbs / 38kg

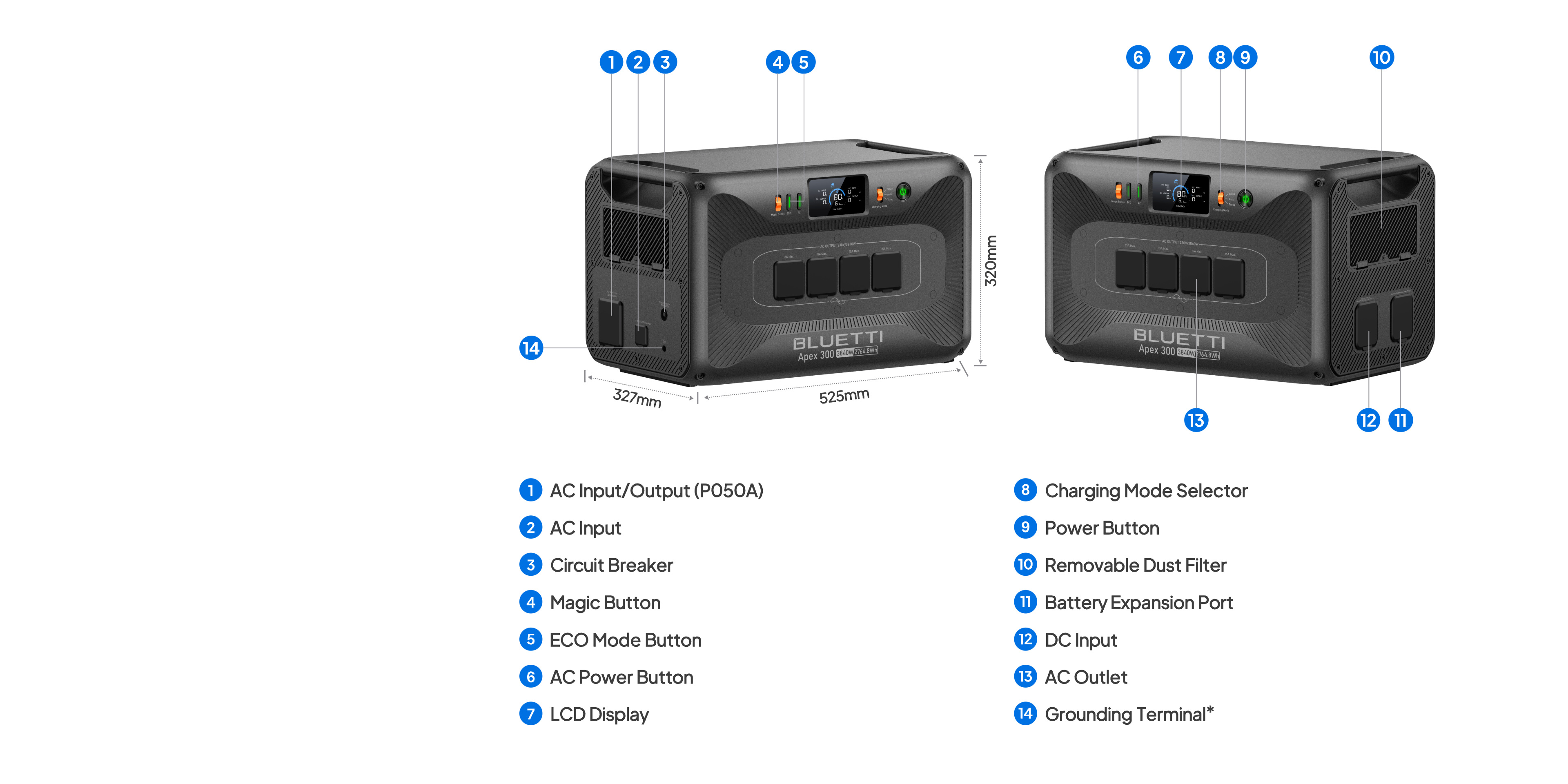

Dimensions (L×W×H)20,67 × 12,87 × 12,6 in / 525 × 327 × 320 mm
Discharging Temperature-4°F to 104°F / -20°C to 40°C
Charging Temperature32°F to 104°F / 0°C to 40°C
Storage Temperature-4℉ to 104℉ / -20℃ to 40℃
CertificationsFCC, UL, TELEC, CE, NTC, RCM, LOA ICASA
Warranty5 Years

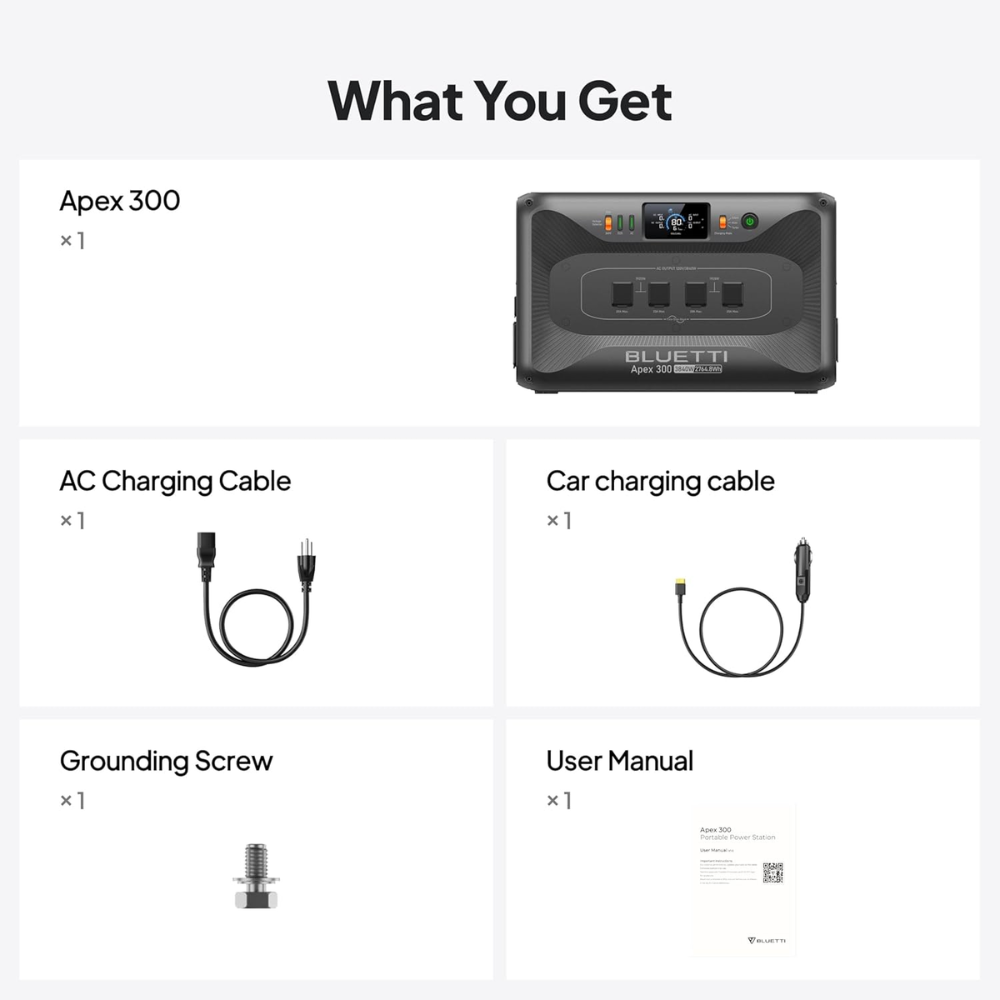

IN THE BOX

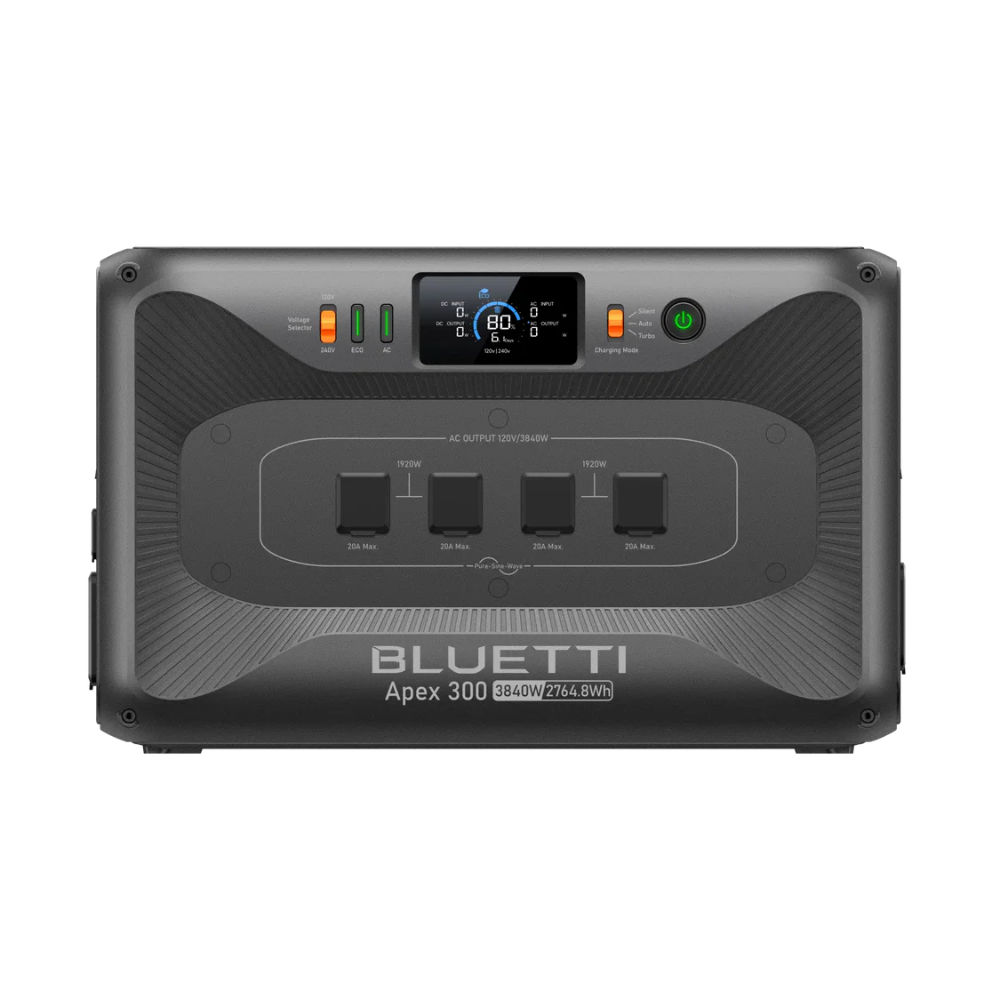

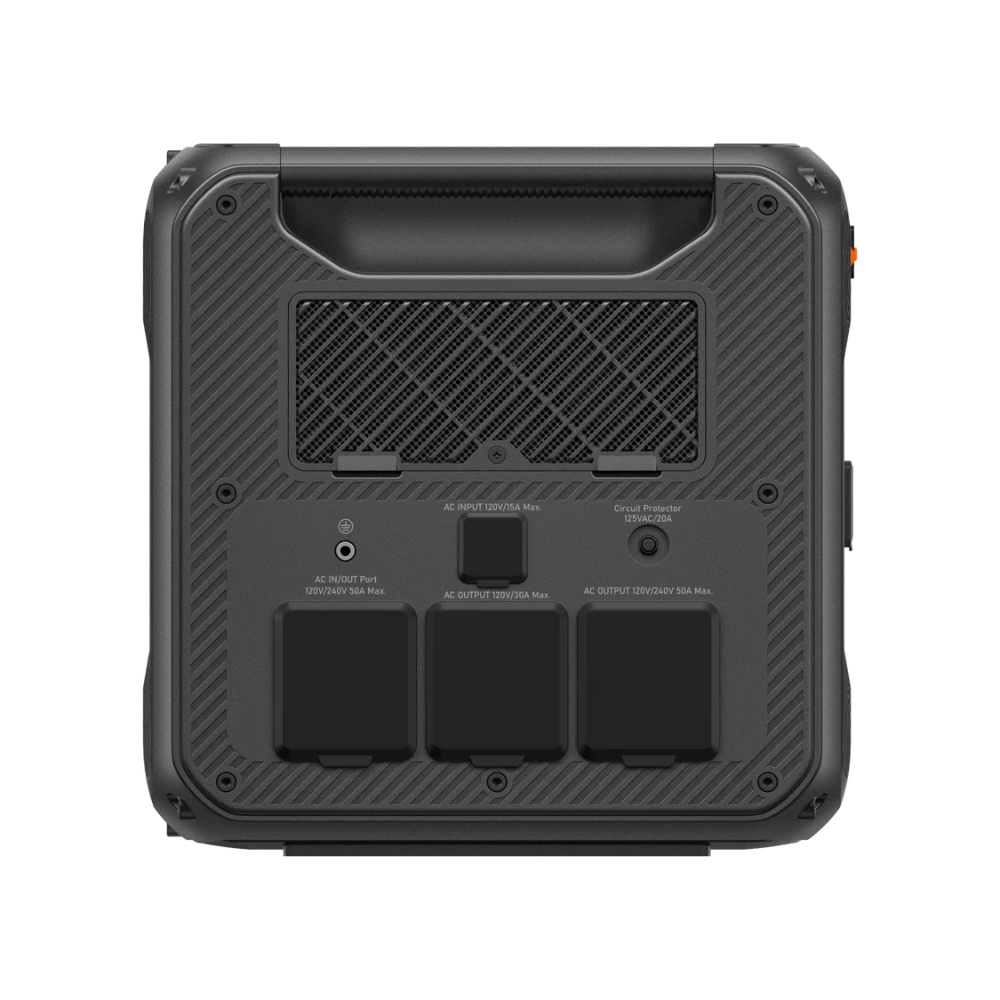

Apex 300 Portable Power Stationx 1
AC Charging Cablex 1
Car Charging Cablex 1
Grounding Screwx 1
