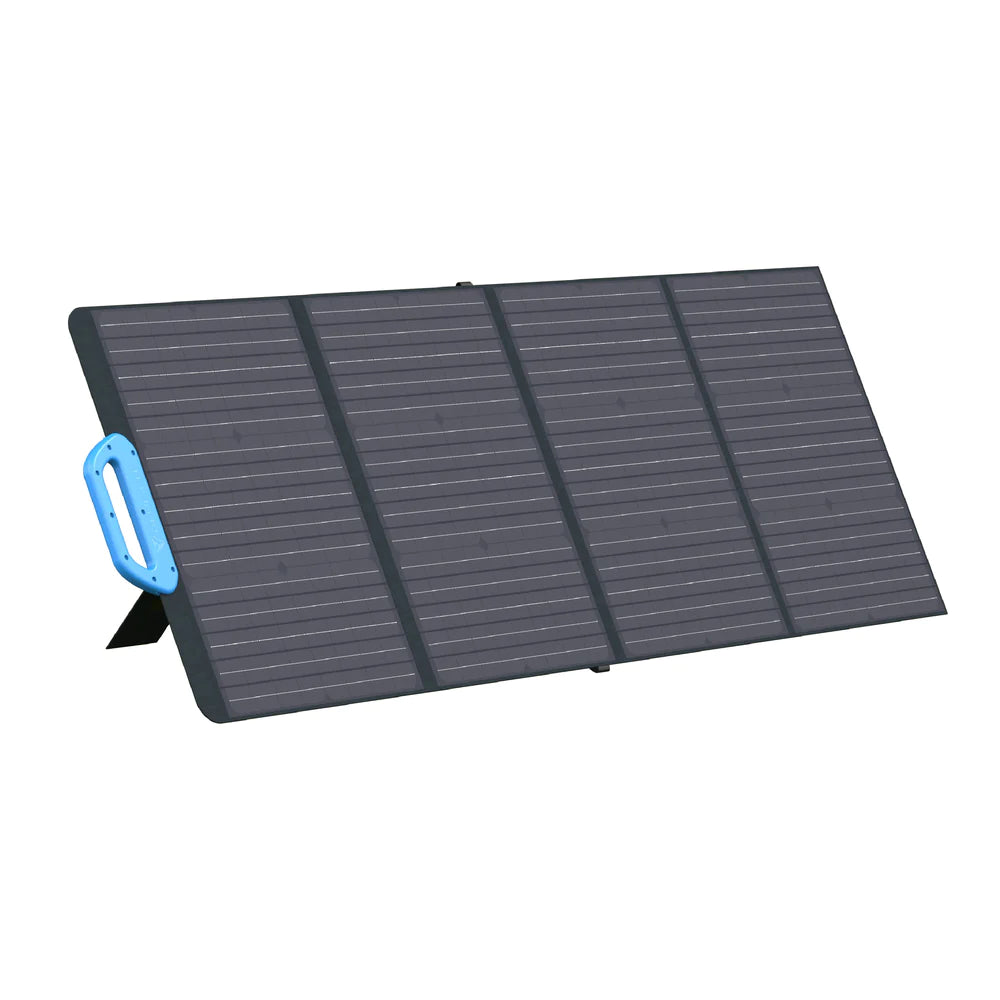

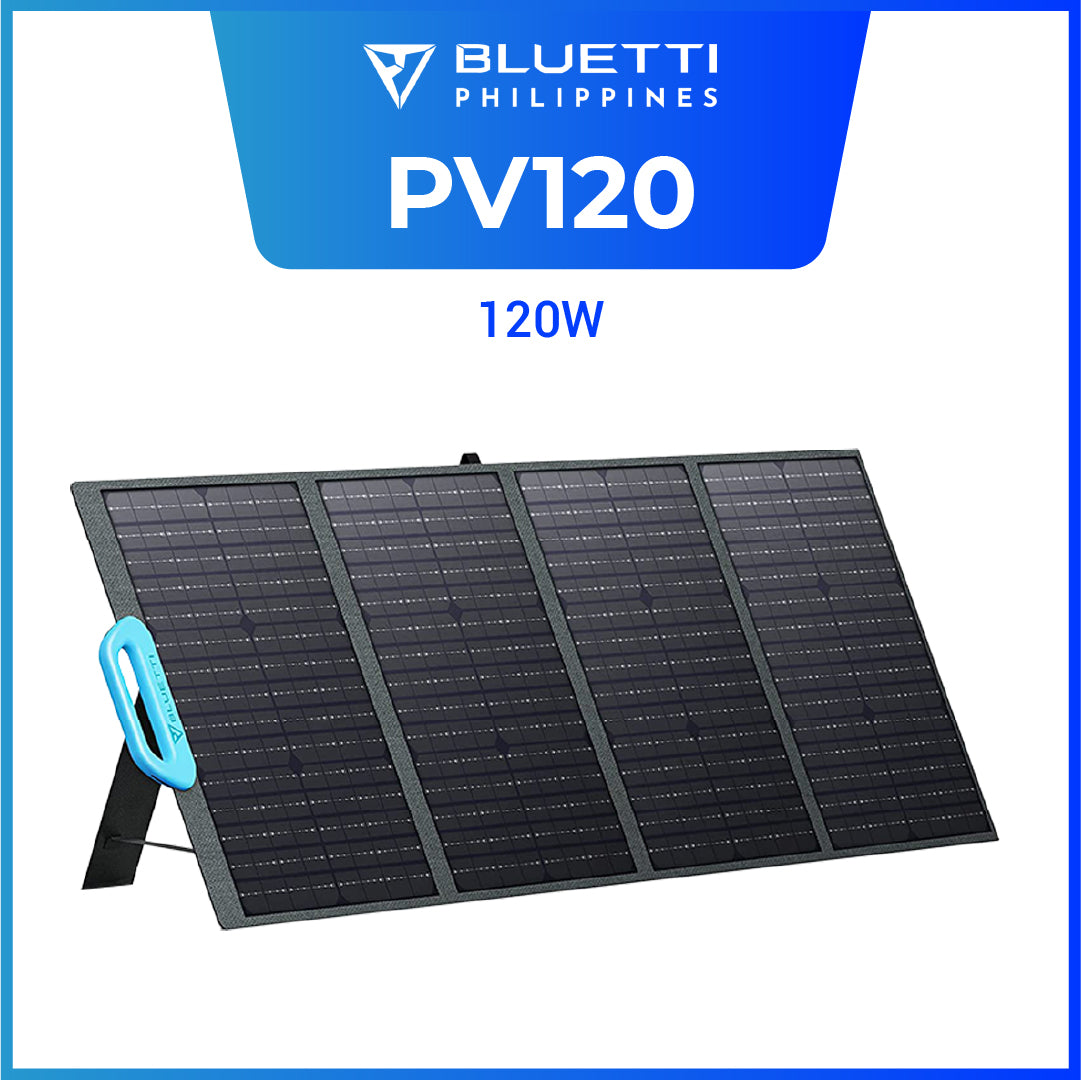

BLUETTI PV120 Solar Panel (120W)

BLUETTI PV120 Solar Panel (120W)

₱15,999.00 PHP
₱24,980.00 PHP ₱15,999.00 PHP
Sale Sold out
  • Monocrystalline Solar Cells With Up to 23.4% Efficiency
  • Long-lasting ETFE Coating

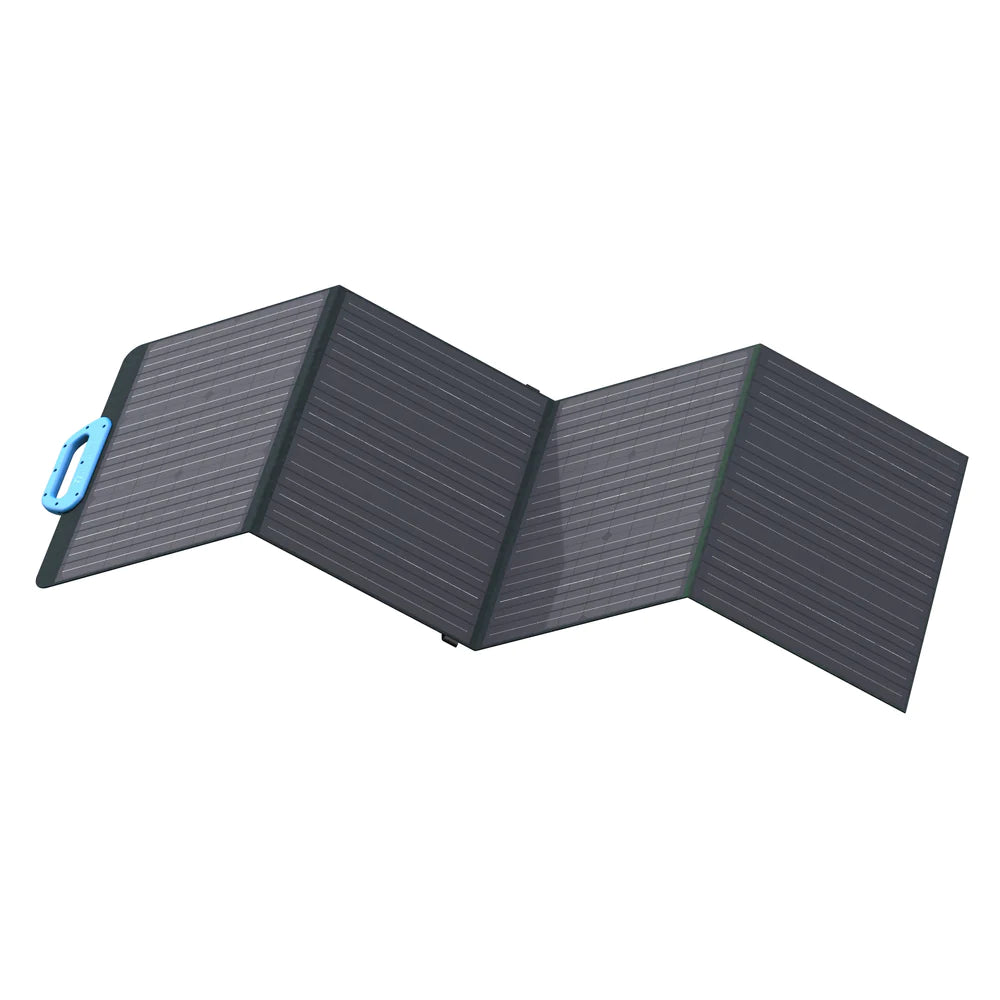

  • Foldable & Portable
  • Compatible With Most Solar Generators with MC4 Connectors
  • 12-month Warranty



Features

Solar Charge Anywhere

Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.

23.4% High Efficiency

Built with monocrystalline solar cells, the PV120 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.

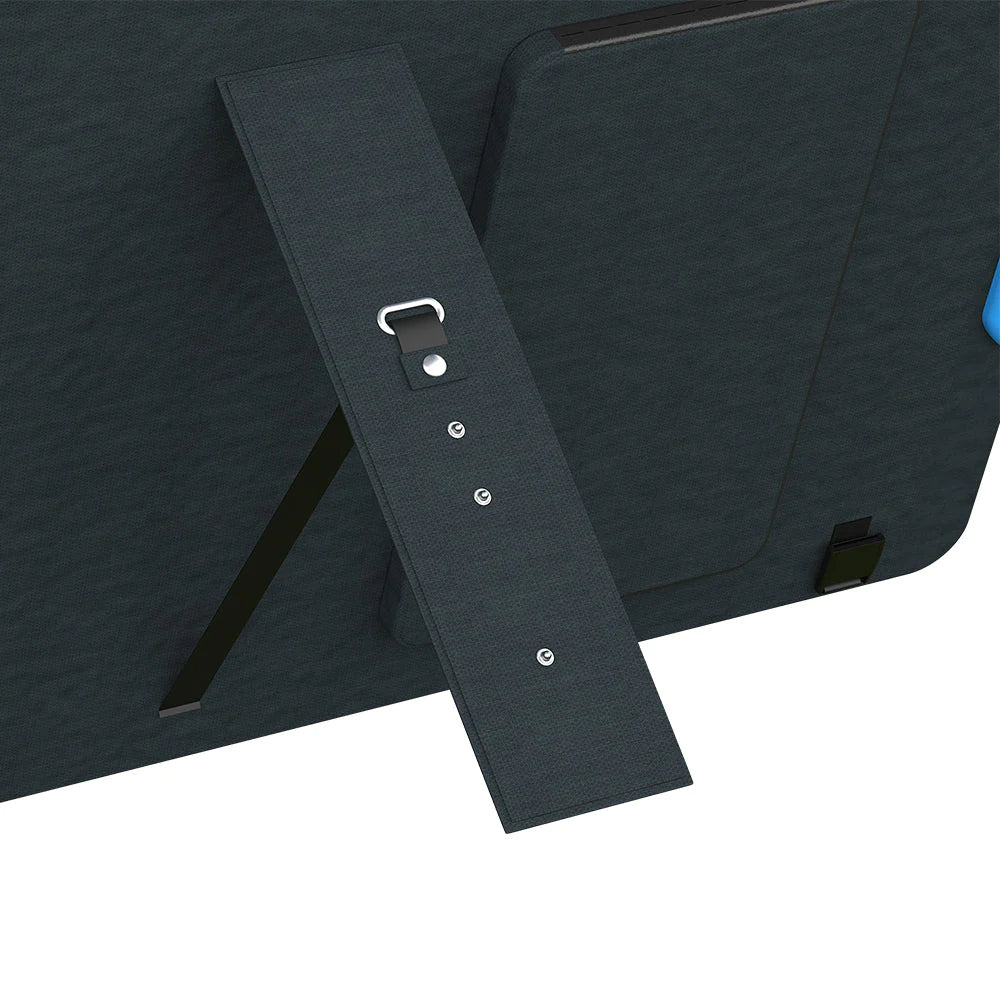

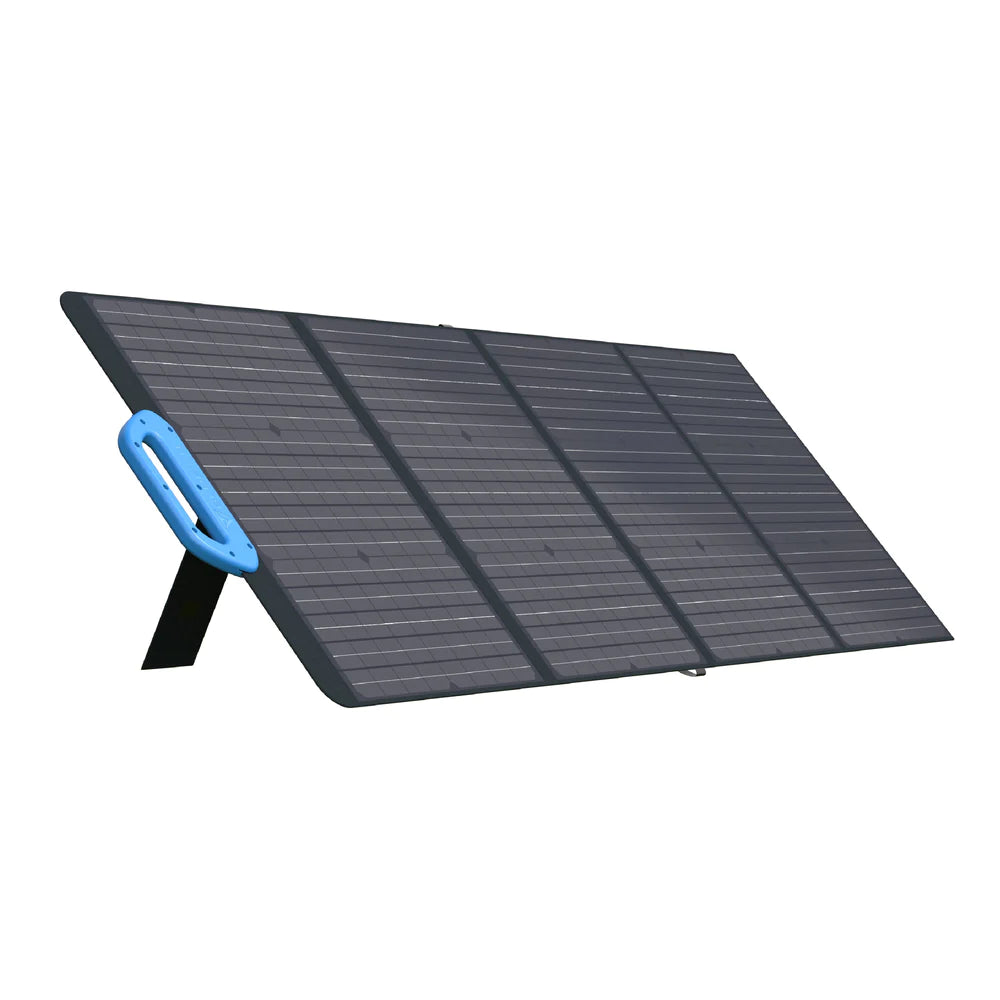

Easy Setup With Kickstand

Unfold the PV120, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)
BLUETTI EB55 (537Wh) + PV120: Charge in as soon as 5 hours
BLUETTI AC200P (2,000Wh) + 2*PV120: Charge in as soon as 8.5 hours
BLUETTI AC200MAX (2,048Wh) + 4*PV120: Charge in as soon as 4.5 hours
BLUETTI AC300 + B300 (3,072Wh) + 8*PV120: Charge in as soon as 3.5 hours
BLUETTI EP500 (5,120Wh) + 6*PV120: Charge in as soon as 7.5 hours

Built to Last

The ETFE coating and IP67 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)

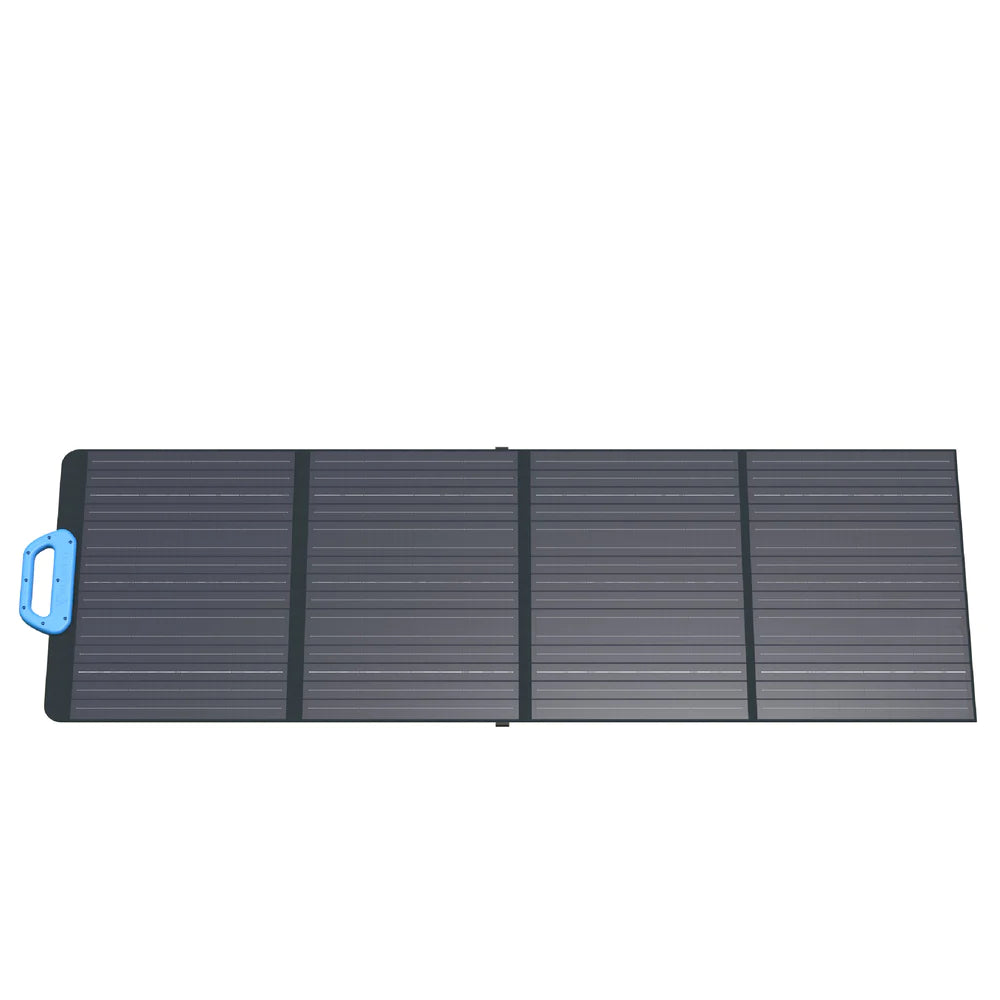

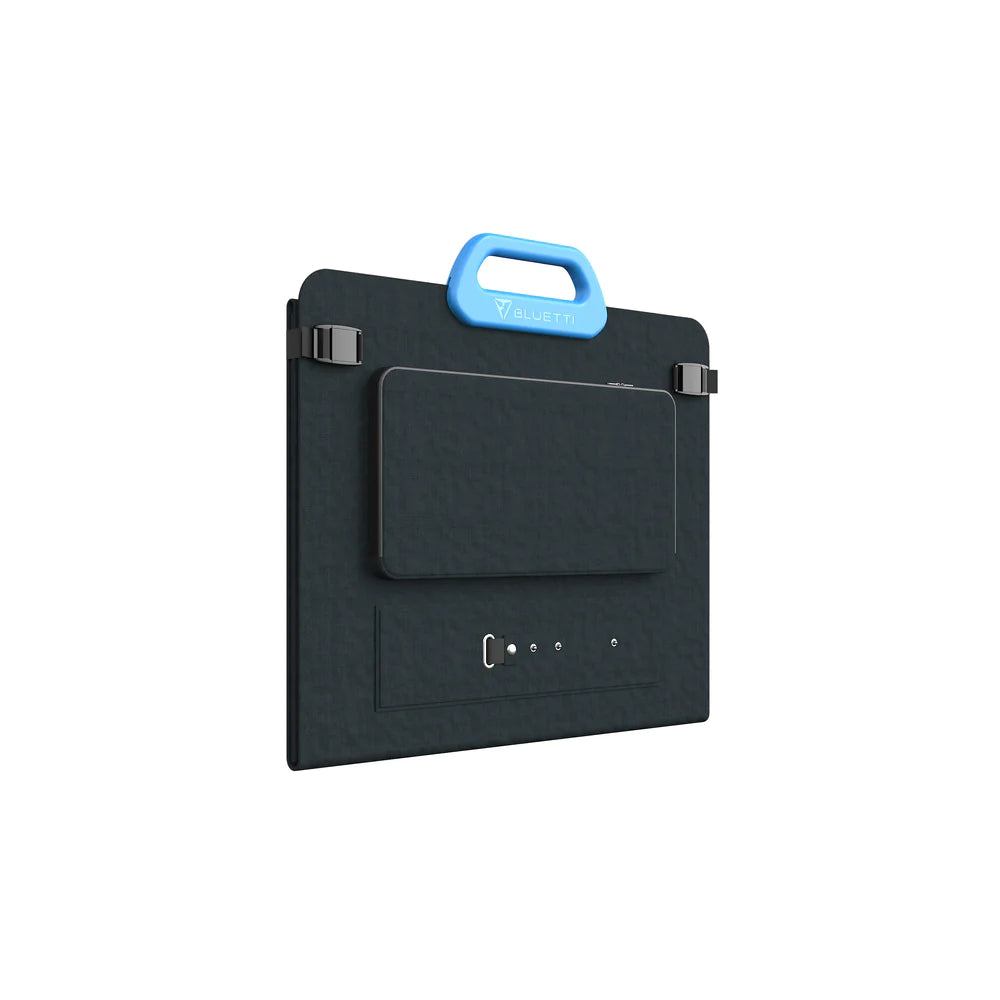

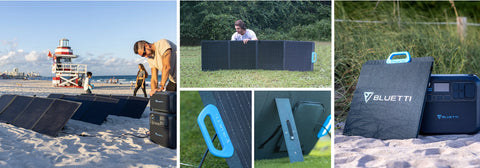

Portable in Every Way



Tech Specs

Technical Specifications


POWER

Power: 120W

Lamination: ETFE (Ethylene tetrafluoroethylene)

Cell Type: Monocrystalline Silicon

Cell Efficiency: Up to 23.4%

Voltage at Max Power(Vmp): 19.6V

Current at Max Power(Imp): 6.1A

Open Circuit Voltage(OCV): 24.8V

Short Circuit Current(Isc): 6.43A



GENERAL

Connector: Standard MC4 Connector

Weight: 14.9lbs (6.8kg)

Dimensions (Unfolded): 21.7 × 68.8in (55.2 × 174.9cm)

Dimensions (Folded): 21.7 × 18.1in (55.2 × 46.1cm)

Operating Temperature: 14-149℉ (-10-65℃)

Best Working Temperature: 77℉ (25℃)

Cable Length: 118in (3m)

Certifications: FCC, CE, ROHS

Warranty: 12 Months (Enter to learn more about BLUETTI warranty policy)



IN THE BOX



FAQS

FAQS

Q1: Is it waterproof?

A: Yes. IP67 is rated for junction box. Do not expose the solar panel to rain or snow.

Q2: Can I install it on the roof?

A: No.

Q3: What is the difference between the PV120 and SP120?

A: Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.*

* Conclusion from BLUETTI Lab, for reference ONLY.

Q4: BLUETTI PV120 compatibility.

A: Most solar power stations on the market, and one PV120 solar panel is ideal for BLUETTI EB55/EB70S/AC50S portable power stations.

Q5: How do I choose solar panels for my solar generator?

A: Review the PV input requirements of the solar generator.
Review the output specifications of solar panels.
Calculate the total voltage, current, and wattage of solar panels.
Consider the solar input connectors.

Q6: Can I use different size solar panels?

A: No. Your solar panels should be the same type and rating from one brand. For example, two PV120 to charge BLUETTI AC200P is acceptable, and one PV120 + one SP120 is unacceptable.

Q7: Does the panel have any USB ports you can directly plug into?

A: No. BLUETTI PV120 only has MC4 connectors.

Q8: How do I maximize the efficiency of solar panels?

A: These steps will help you get the most out of your solar panels:

1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.
2. Avoid shadow areas: Any amount of shadow will affect solar panel production.
3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.
4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.

Q9: Can AC200 MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

A: YES.

Q10: What should I do when using it?

It is recommended to not have any cover when using.
